Handicare PUMA 40 - Replacing castor wheels

Puma 20/4064 | Service instructions
5.2.4 Castor wheels
Replacing the castor wheel
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive and castor wheels
clear of the ground.
Instructions
The following operations are required to replace the castor
wheels:
• Loosen the shaft and locking nut.
• Hold the wheel tight and remove the shaft.
• Take the castor wheel out of the fork.
• Mount the new castor wheel in the reverse order.
Notice
• Use a lifting device to raise the wheelchair / Puma 20/40
carrier.
Relevant article numbers
Puma 20
• 9007753 Castor wheel indoor 200x50, grey air
• 9007754 Castor wheel indoor 200x50, grey puncture proof
• 9005986 Castor wheel indoor 2.80/2.50-4, air
• 9005989 Castor wheel indoor 2.80/2.50-4, puncture proof
• 9005987 Castor wheel outdoor right 3.00-4, grey air
• 9006820 Castor wheel outdoor left 3.00-4, grey air
• 9005990 Castor wheel outdoor 3.00-4, grey puncture proof
Puma 40
• 9005998 Castor wheel Indoor 2.80/2.50-4, air
• 9006003 Castor wheel indoor 2.80/2.50-4, puncture proof
• 9006000 Castor wheel outdoor right 3.00-4, grey air
• 9005999 Castor wheel outdoor left 3.00-4, grey air
• 9006005 Castor wheel outdoor right 3.00-4, grey puncture
proof
• 9006004 Castor wheel outdoor left 3.00-4, grey puncture
proof
• 9006002 Castor wheel outdoor right 3.00-4, black air
• 9006001 Castor wheel outdoor left 3.00-4, black air
• 9006007 Castor wheel outdoor right 3.00-4, black puncture
proof
• 9006006 Castor wheel outdoor left 3.00-4, black puncture
proof
Tools used
• Lifting device
• Open-ended or ring spanners, 13 mm
• Torque wrench, socket, 13 mm
Icons
• N.a.
1

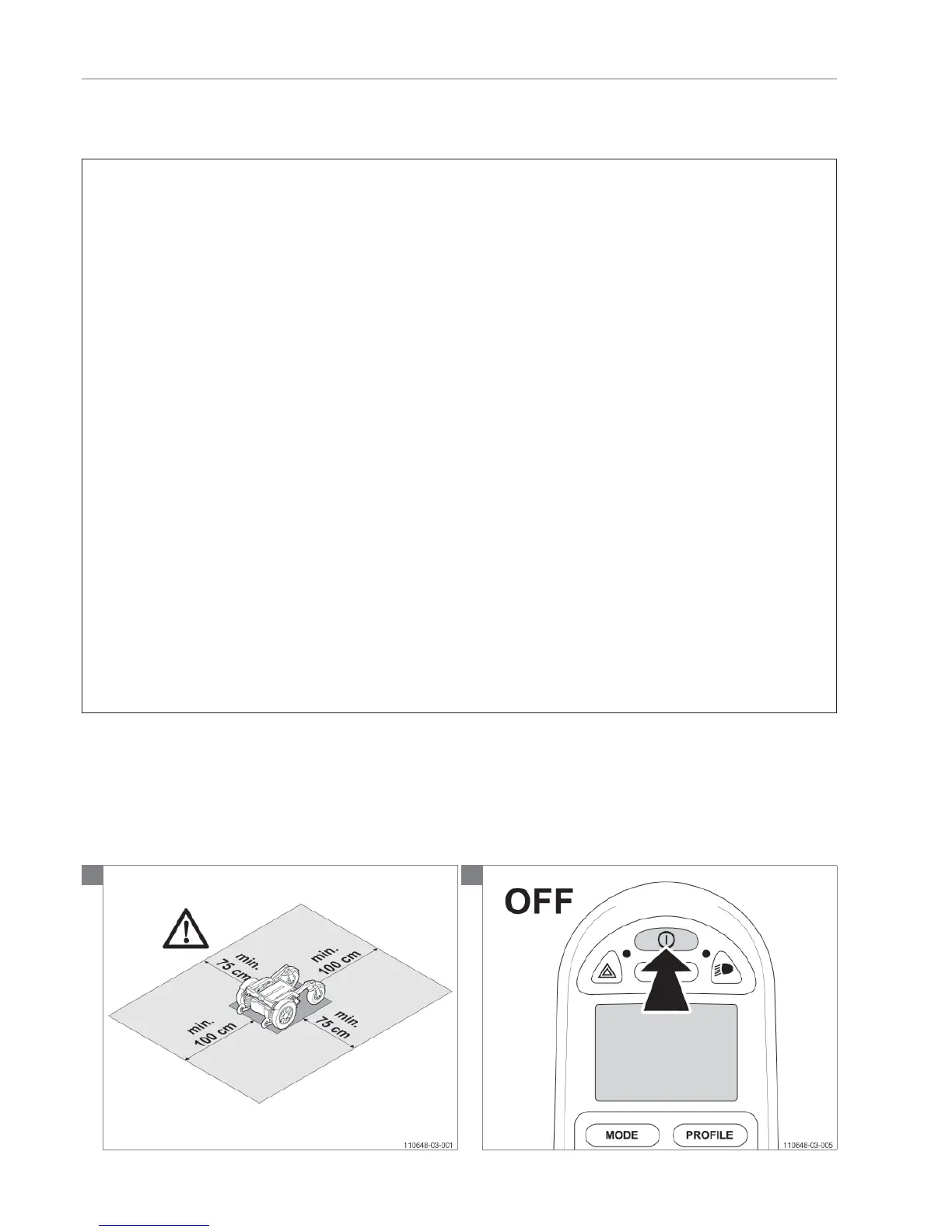

Note! Suitable work area required!
2
