Puma 20/4082 | Service instructions

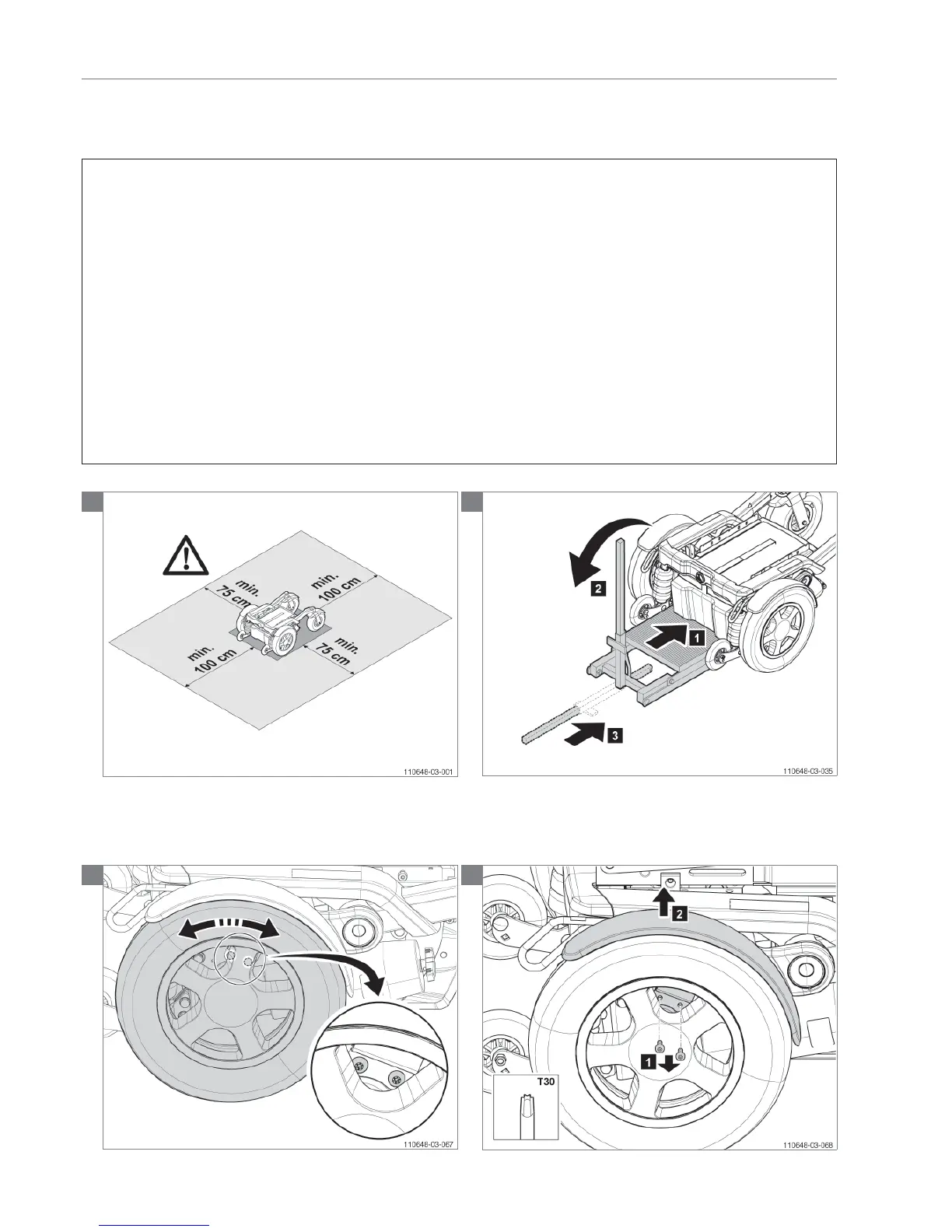

Replacing the mudguards
Preparation
• Switch off the wheelchair via the remote control.
• Use a lifting device to raise the drive wheels clear of the
ground.
Instructions
The following operations are required to replace the
mudguards, with or without brackets.
With brackets:
• Turn the drive wheel in the correct position.
• Loosen (through the rim) the 2 bolts of the mudguard
brackets on the motor arm.
• Remove the mudguards with brackets.
• Tighten the new mudguard with brackets on the motor
arm.
Relevant article numbers
• 9004533 Drive wheel fender black
• 0001.1110 Rivets alu 3,2 x 10
• 9002600 Drive wheel bolt and ring
• 9005978 Drive wheel fender with bracket
Tools used
• Lifting device
• Torx key T30
1
Note! Suitable work area required!
2
3
4
