continuously rotate for more than 5s and the
interval between consecutive starts should be
120s.

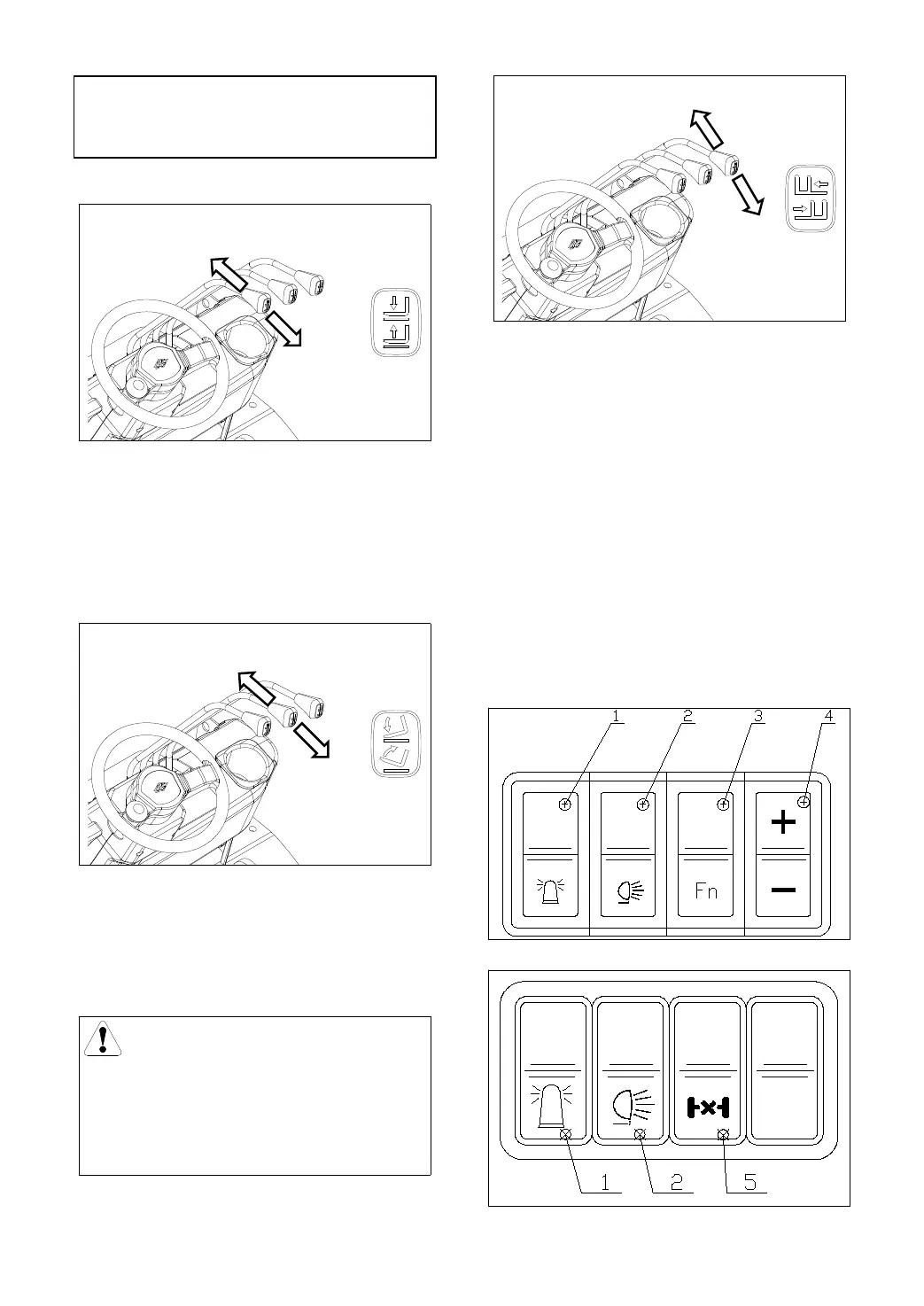

Lifting lever [5]
This lever is used to lift or lower the forks.
Push forward - Down; Pull back - Up
The lifting speed is controlled by the backward
tilt angle of the lever and the accelerator pedal.
The lowering speed is only controlled by the
forward tilt angle of the lever.
Tilt lever [6]
This lever is used to tilt the mast forward and
backward.
Push forward - Forward tilt; Pull back -
Backward tilt
The tilt speed is determined by the tilt angle of
the lever and the throttle control.
Caution
The multi-way valve is equipped with a
forward tilt self-locking valve.
Therefore, when the engine shuts
down, the mast cannot tilt forward even
if the tilt lever is pushed forward.
This lever is used to move the sideshift
frame to the left or right.
Push forward – Move left; Pull back –
Move right
The sideshift speed is determined by the tilt
angle of the lever and the throttle control.
Different types of accessories with different
functions are optional, thus the driver has to
be familiar with the operating method for each
accessory.
Cup holder [7]
A cup holder is set on the right side of the
instrument stand for the driver to place a cup.
Rocker switch [9] [optional configuration]
(2WD rough terrain forklift truck)
