Guide to
Indicators

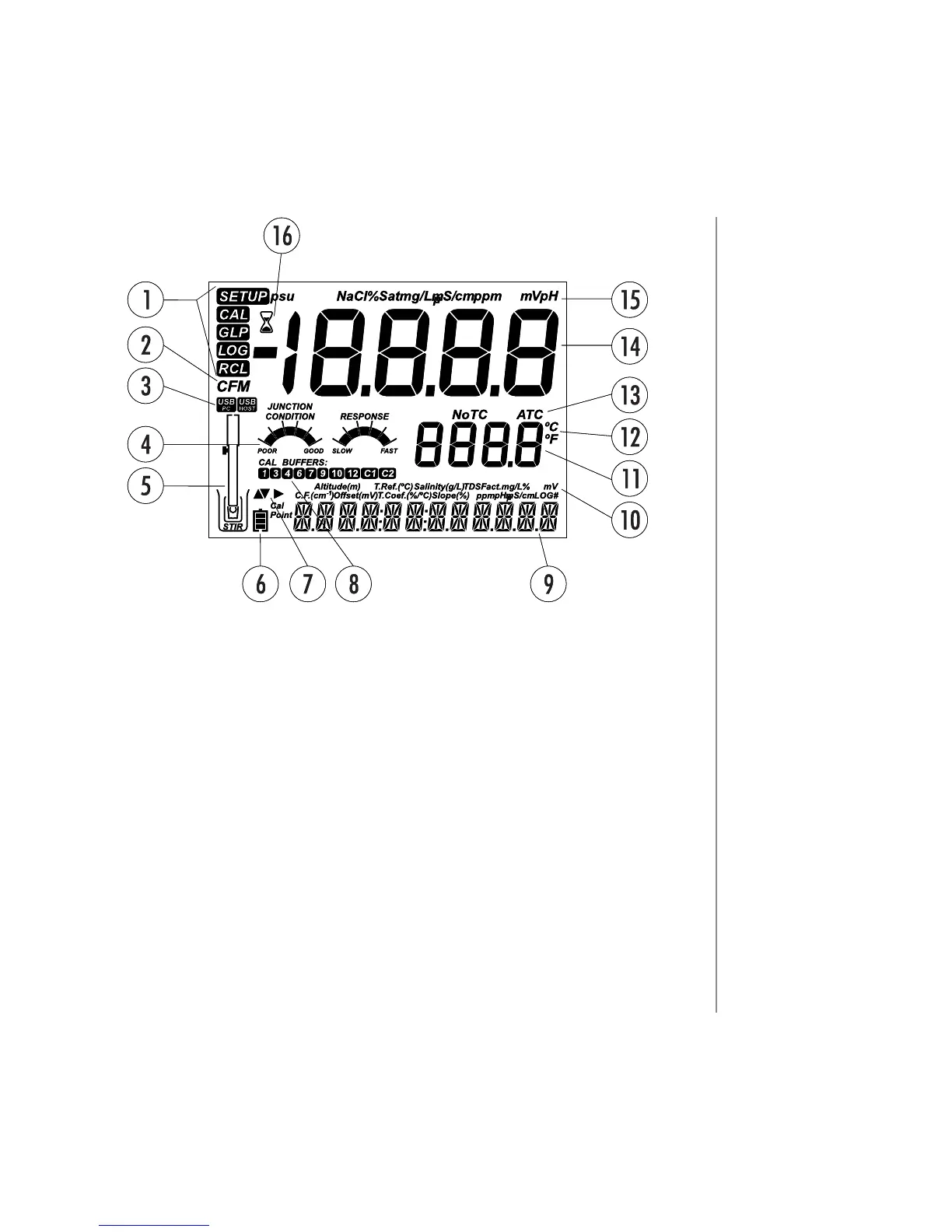

1. Mode tags
2. Conrm tag
3. USB connection status
4. pH electrode diagnostics
5. Probes symbol
6. Battery symbol
7. Arrow tags, displayed when
they are available
8. pH calibration buers used
9. 3rd LCD line, message area
10. Labels
11. 2nd LCD line, temperature
measurement
12. Temperature units
13. Temperature status
14. Measurement line
15. Measurement units
16. Stability Indicator
The third line of the LCD is a dedicated message line. During measurement
the user may use the p q arrows to select desired message. Options include
Date, time, calibration data, battery charge or no message. If a measurement
error or log status change occurs during measurement, the third line will
display a pertinent message.
