Description
Intended use
The gear unit is a part of a machine.
Only use the gear unit for the application, ambient conditions, operation conditions and
other conditions of use shown in the order acknowledgement.
Resonant vibrations may cause severe overloads on components which may be several
times higher than the nominal load. The responsibility for the vibration analysis which
includes the total system of driver, gearbox, driven equipment, couplings, mounting
conditions and sources of excitation rests with the owner of the installation. H.I.T. is not
responsible for system dynamics and related damage.

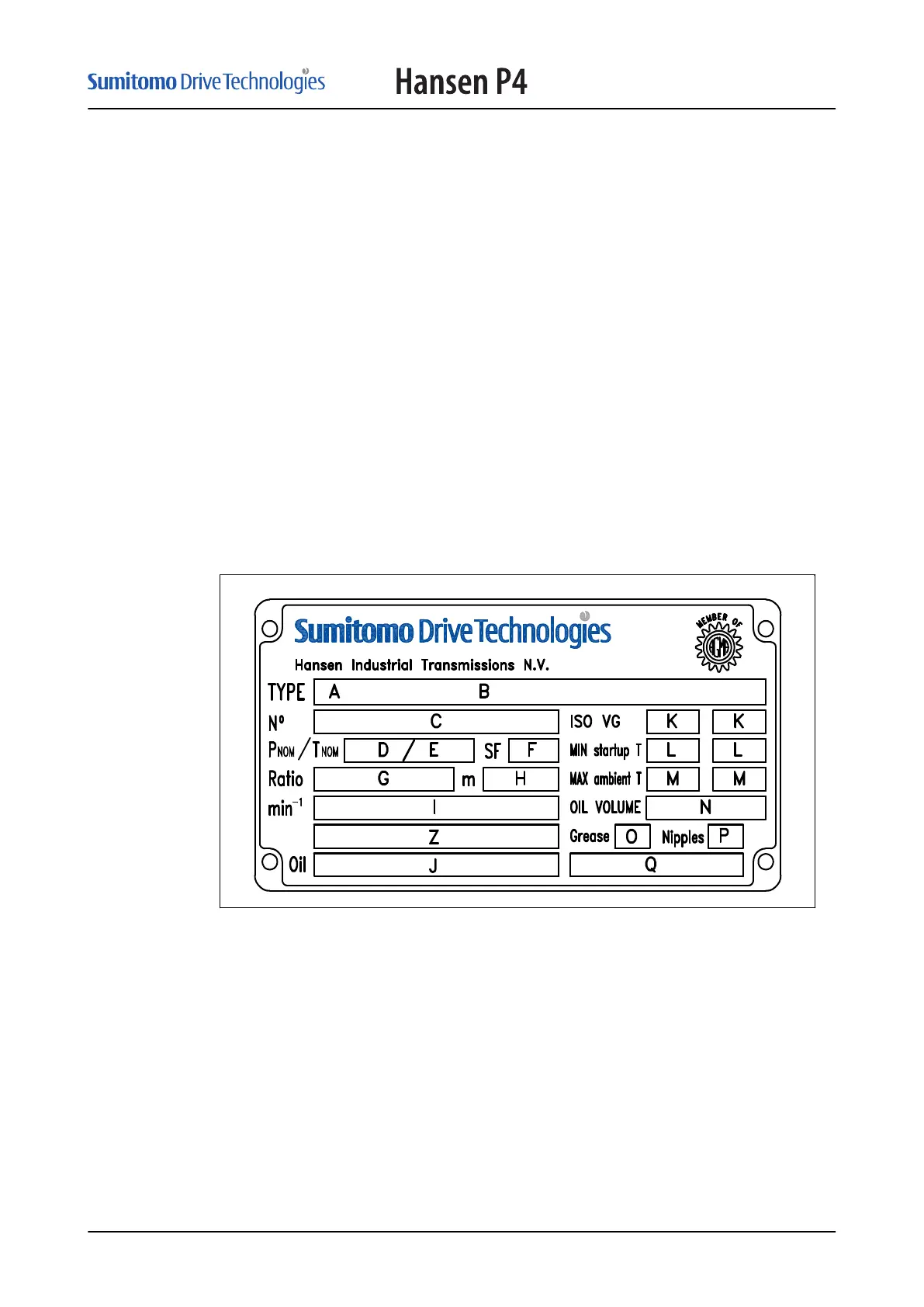

Type plate
Type plate
The type plate gives information about the gear unit.
A Manufacturing number
B Gear unit type
C Production number
D Nominal power rating at the HSS
E Nominal torque rating at the LSS
F Service factor
G Exact ratio (R: reduction, M: multiplication)
H Mass of the gear unit, without gear oil
I Input speed n1 (output speed n2)
Input speeds n1/n1' (output speeds n2/n2')
4
4.1
4.2
4.2.1
Description
