Procedure
1. For the correct type and viscosity of gear oil, refer to the type plate.
2. With the type and viscosity, select the gear oil from the tables in section
Lubricants
on page 61.
3. If the gear unit contains gear oil for storage, drain it.
Add gear oil (gear unit with motor base)
Only do the procedure the first time you install the gear unit.
Add oil at the top side of the gear unit.
Procedure
1. Open the gear unit at the oil fill plug at the top side of the gear unit. Refer to the sign
on the gear unit and the certified drawing.
2. If you do not have access to the oil fill plug:
a) Remove the belt.
b) Lift the motor base.
3. Add 3 L of gear oil. If the certified drawing shows another quantity, add the quantity
on the certified drawing. You can use an oil pump.
4. Lower the motor base.
5. Install the belt.
Add gear oil (QHR.4, QVR.3 and QVR.4)
Only do the procedure the first time you install the gear unit.
Add oil to the bearing housing.
Procedure
1. Open the gear unit at the oil fill plug for the bearing housing. Refer to the sign on the
gear unit and the certified drawing.
2. Add 3 L of gear oil. If the certified drawing shows another quantity, add the quantity
on the certified drawing. You can use an oil pump.
Measure the gear oil level
Procedure

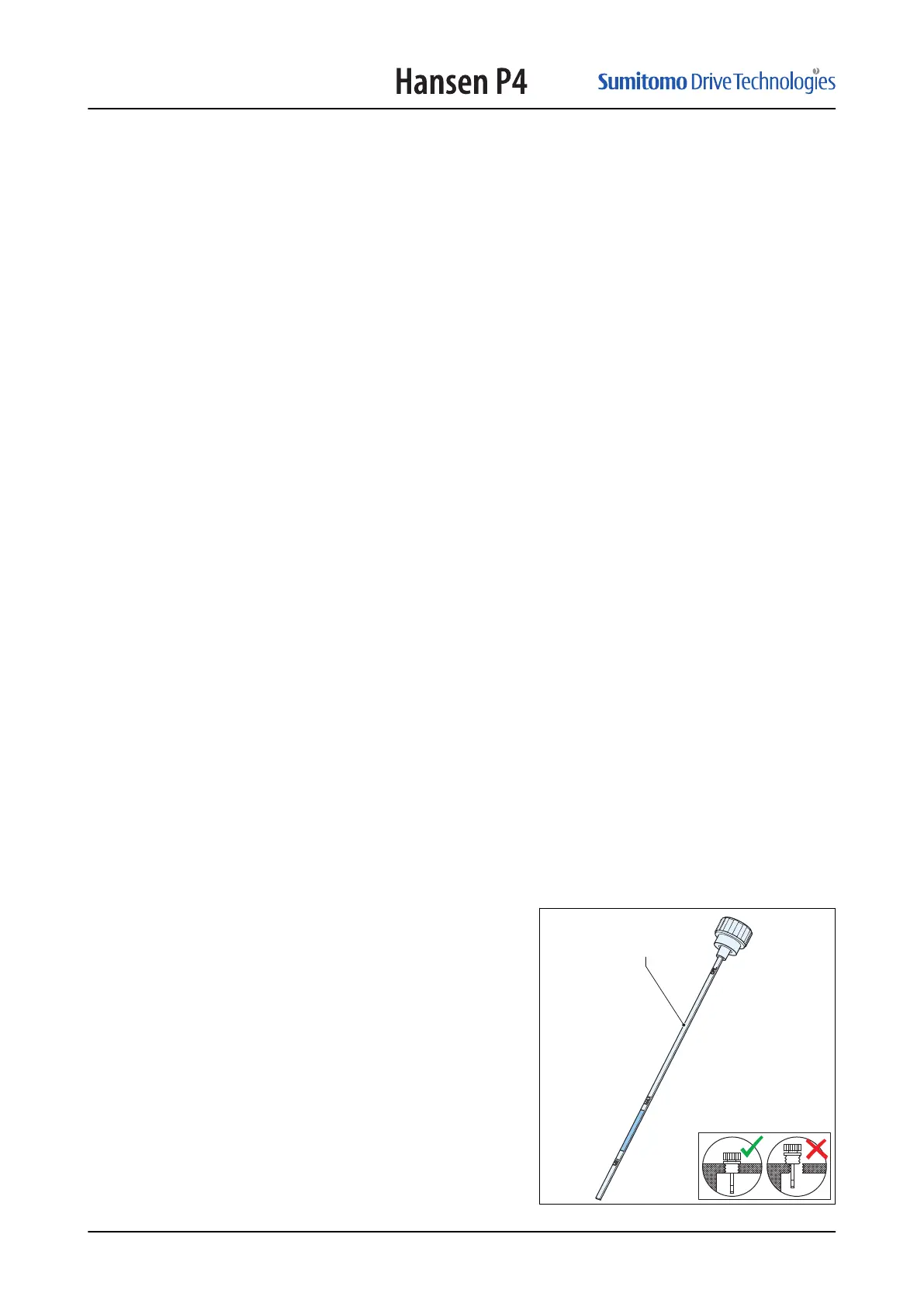

1. Remove the dipstick (A). Refer to
the sign on the gear unit.
2. Clean the dipstick.
3. Lower the dipstick fully.
4. Remove the dipstick.
5. Read the gear oil level on the
dipstick.
6. If the gear oil level is below the
minimum level indicated on the
dipstick, add gear oil.
7. If the gear oil level is above the
maximum level indicated on the
dipstick, drain gear oil.
8.13.2
8.13.3
8.13.4
Installation
40
IM_405_002_EN
