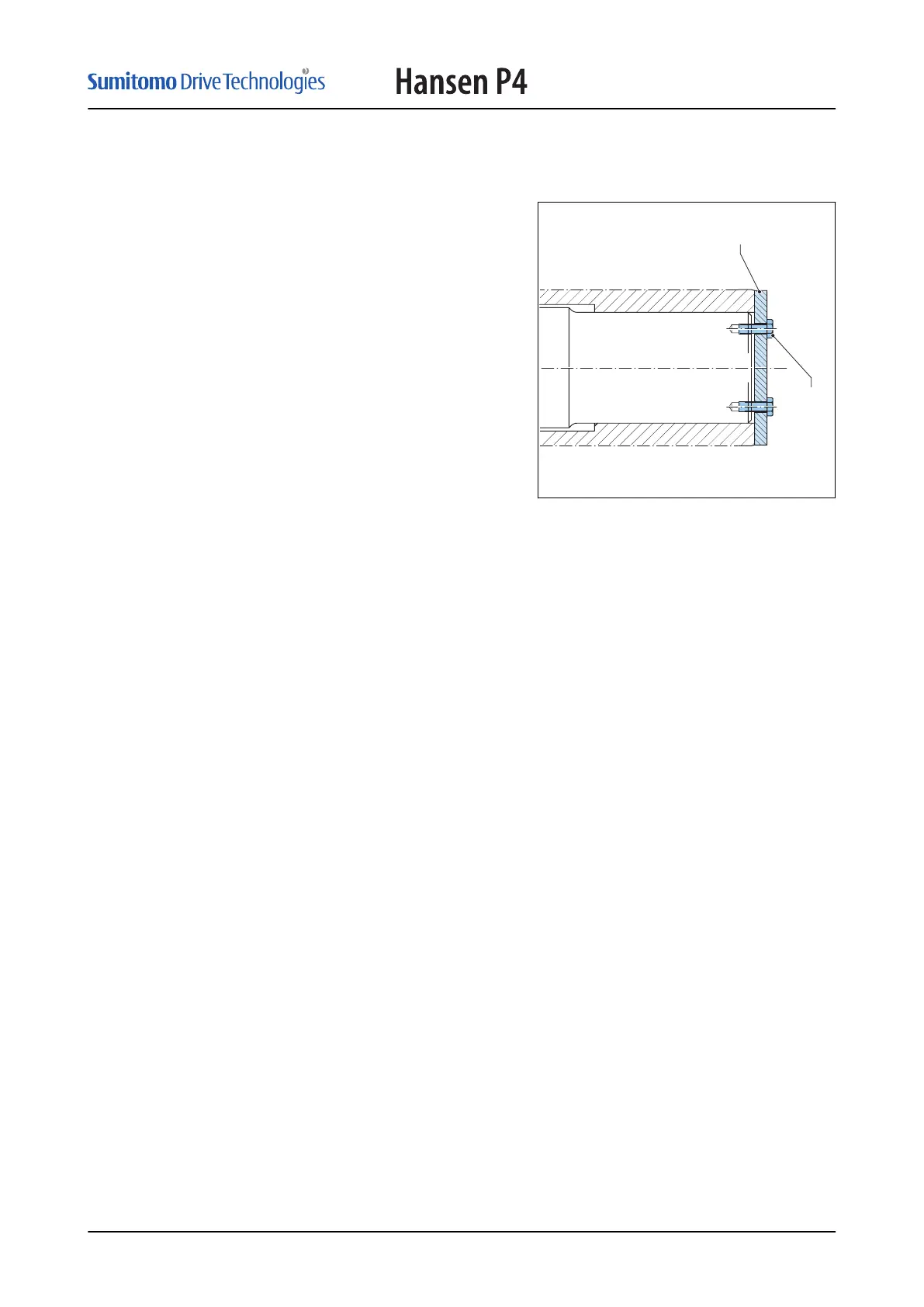

Install the locking disk
Procedure
1. Install the locking disk (A) and the
bolts (B).
2. Install the safety cover.
Install the safety cover
Procedure
1. Install the safety cover.
Install the torque arm
Install the torque arm
Procedure
1. Attach the gear unit to a torque reaction point. Use a torque arm. Refer to the
certified drawing for the location of the torque arm on the gear unit.
Prestress the disk springs of the torque arm
This is necessary to make sure that the connection between the torque arm and the
torque reaction point stays flexible and resilient.
8.10.3
Installation
IM_405_002_EN
37
