Note: The instructions from this point in the procedure only apply to 2-part
shrink disk of the types shown in section
Shrink disk specifications (2-part
shrink disk)
on page 58.
Procedure

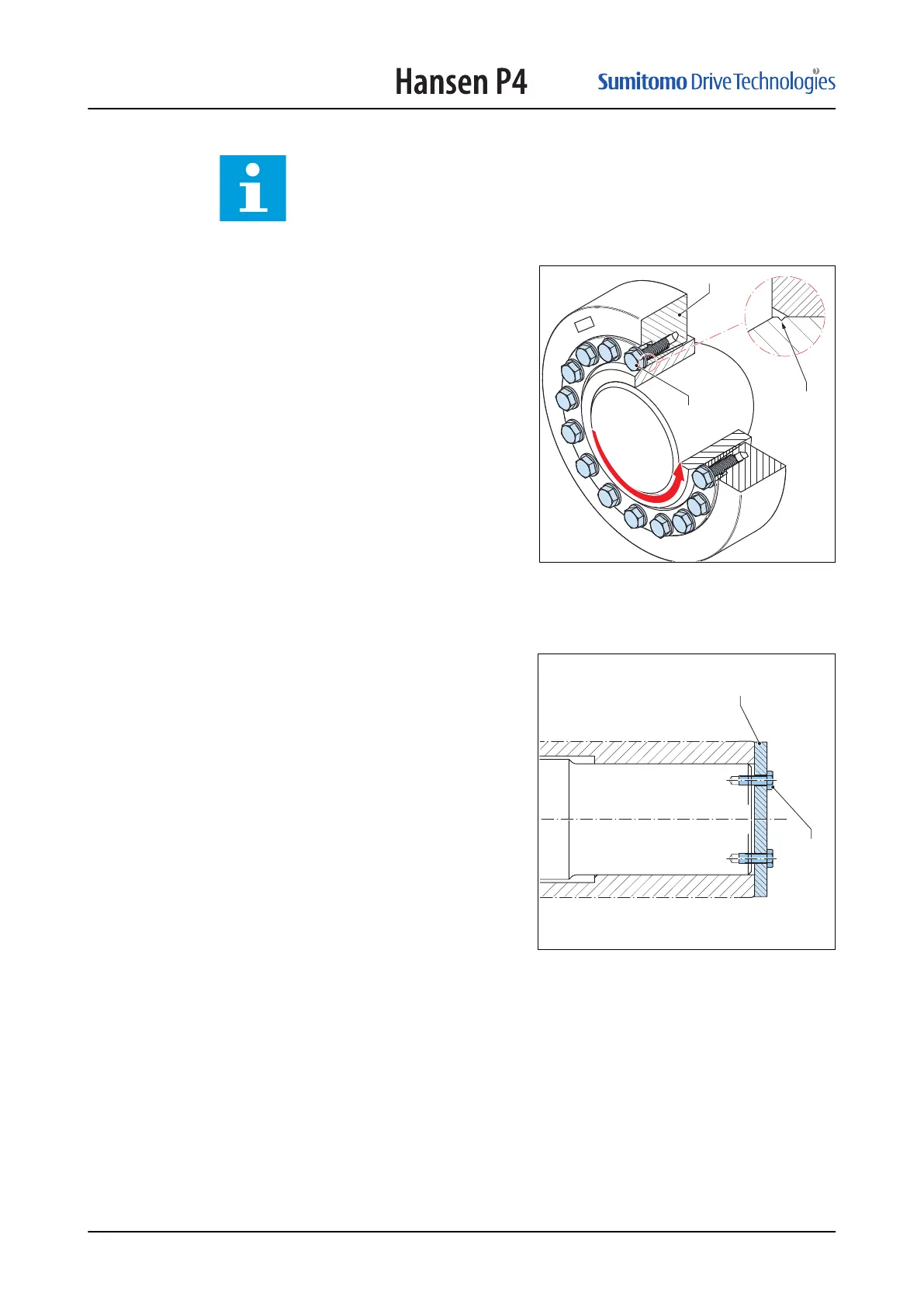

1. Install the shrink disk (A) to the
position marked with a locating
groove (B).
2. Tighten 4 bolts (C), approximately
equally spaced, 3/5 of the correct
torque. Refer to section
Torque
specifications
on page 59.
3. Tighten all screws in several steps
clockwise and increase the torque
gradually to the correct torque.
Make sure to keep inner ring and
outer ring parallel during the whole
tightening process.
4. Remove the threaded rod, the nut
and the installation disk that are
used for installation.
Instructions if the shoulder of the machine shaft does not absorb the axial load
Procedure
1. Install the locking disk (A) and the
bolts (B).
2. Refer to the certified drawing for
more instructions.
Install the safety cover
Procedure
1. Install the safety cover.
Install the shaft with keyway connection
8.10.2
Installation
34
IM_405_002_EN
