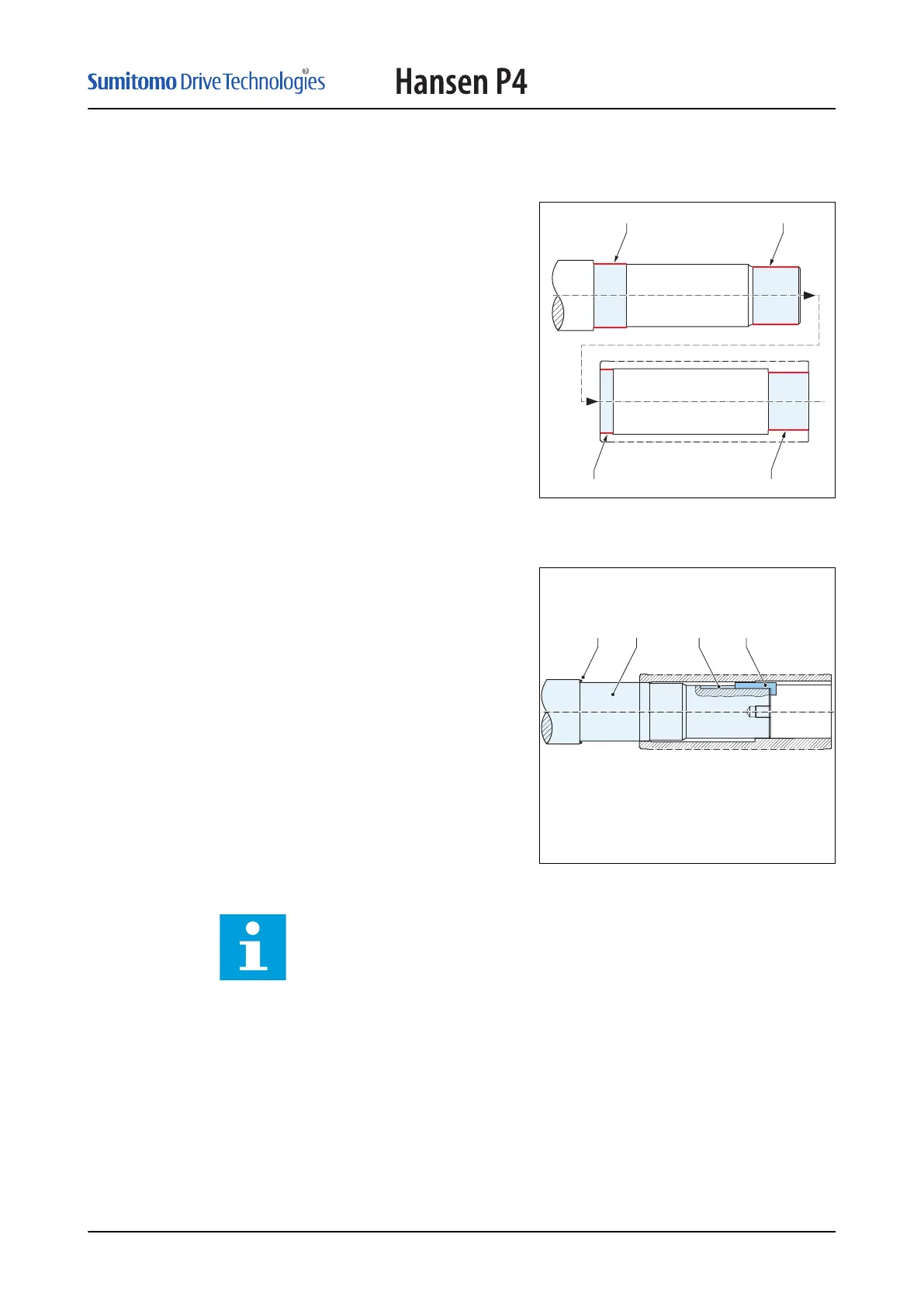

Lubricate the contact surface
Procedure
1. Clean and remove grease from the
contact surfaces (A) and (B).
2. Apply lubricant, only to contact
surfaces (A) and (B). For the
lubricant specification, refer to
section
Lubrication
on page 58.
3. Wait until the lubricant is dry.
Install the installation key on the machine shaft
Procedure
1. Install the O-ring (A) on the
machine shaft (B).
2. Install the installation key (C) in the
keyseat (D) of the machine shaft.
3. Make sure that the short leg of the
installation key touches the end of
the machine shaft.
Install the gear unit on the machine shaft
Note: The parts (D), (E) and (F) are not a part of the gear unit. Speak to H.I.T.
if it is necessary that H.I.T. supplies these parts.
Installation
IM_405_002_EN
35
