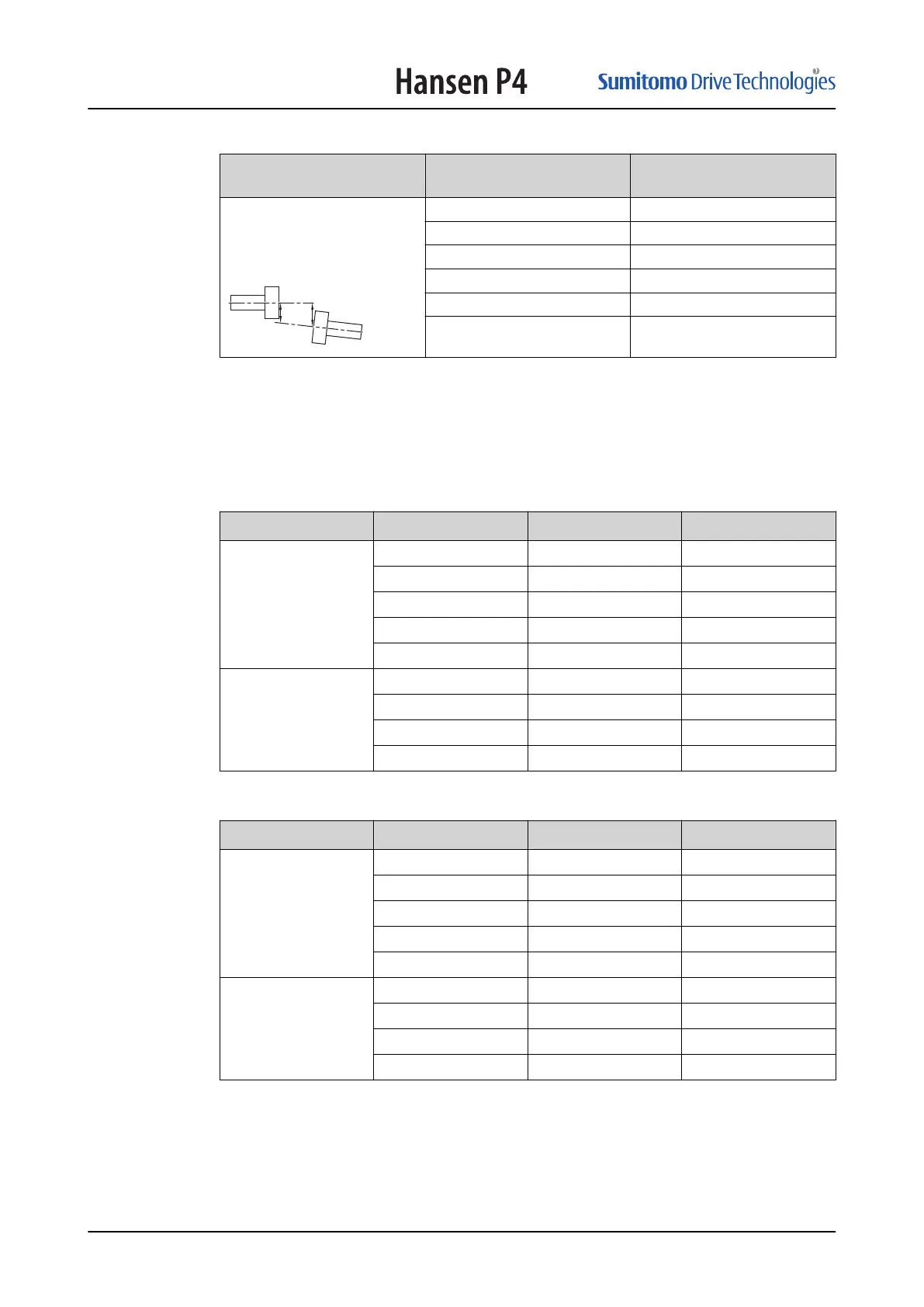

Hansen P4 Installation Manual

Type of coupling Speed of the HSS [1/min ] Maximum permitted misalign-
ment [mm] ([mils])
Radial misalignment for the
spacer shaft and membrane
(disk) coupling, spacer length
100 mm (1 inch)
750 0.25 (2.5)
900 0.20 (2.0)
1000 0.18 (1.8)
1200 0.15 (1.5)
1500 0.12 (1.2)
1800 0.10 (1.0)
Bolt specifications (gear units with solid shafts)
Bolt specifications (single-stage, horizontal LSS)
Table for bolts according to DIN 267 bolt quality grade 8.8
Gear unit type Gear unit size Bolt dimension [ISO] Torque [Nm]
QHP.1 C M20 335
D M24 675
E M24 675
F M30 1350
G M30 1350
QHP.1T G M36 2350
H M36 2350
J M36 2350
K M36 2350
Table for bolts according to SAE bolt quality grade 5
Gear unit type Gear unit size Bolt dimension [UNC] Torque [lbf.in]
QHP.1 C 3/4" 2950
D 7/8" 4850
E 1" 6000
F 1 1/8" 10300
G 1 1/4" 12000
QHP.1T G 1 1/2" 21000
H 1 1/2" 21000
J 1 1/2" 21000
K 1 1/2" 21000
13.10
13.10.1
Technical data
54
IM_405_002_EN
