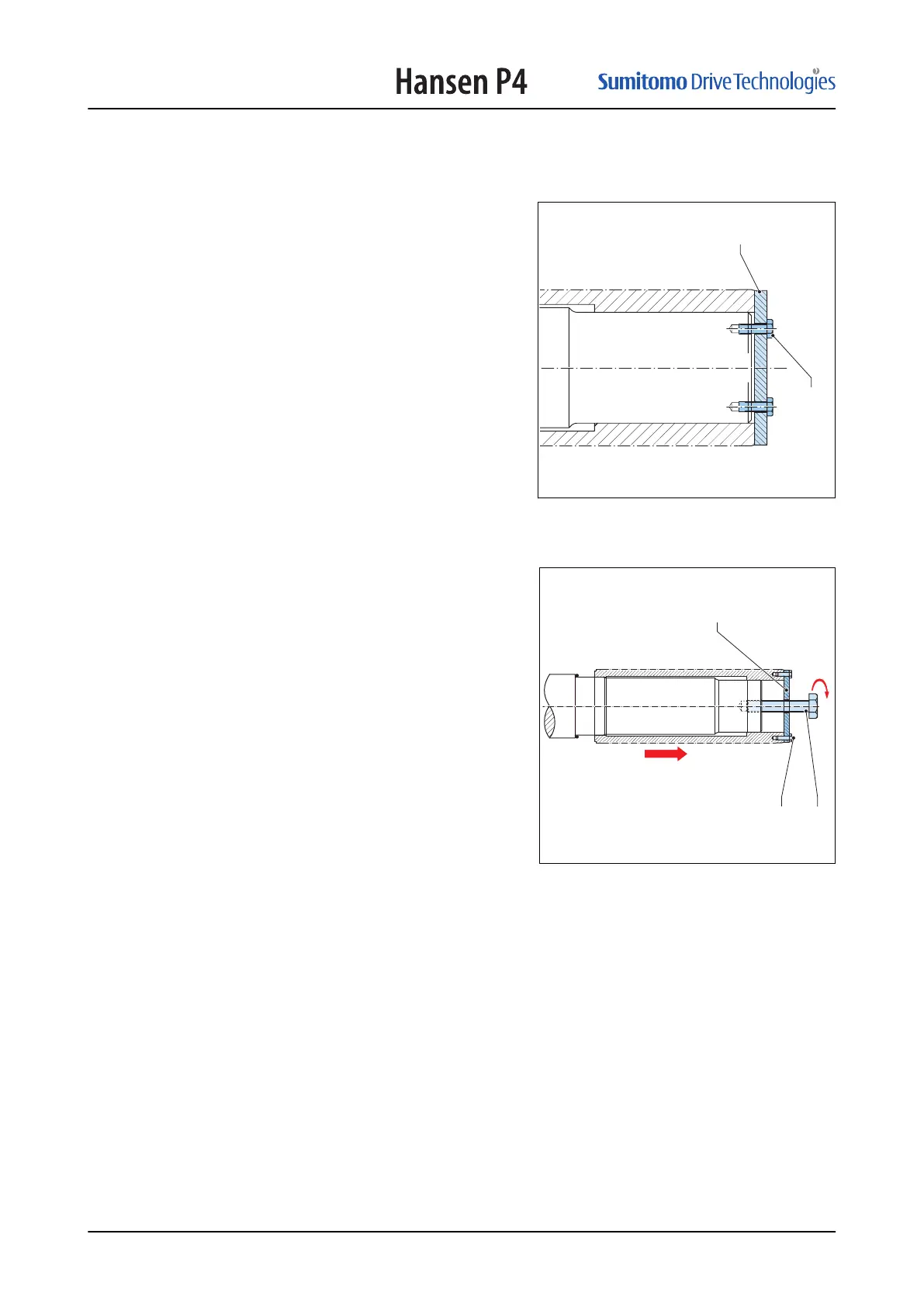

Remove the locking disk
Procedure
1. Remove the safety cover.
2. Remove the bolts (B).
3. Remove the locking disk (A).
Remove the gear unit
Procedure
1. Install these parts:
• Installation disk (A)
• Bolts (B) (for the type of bolts,
refer to the certified drawing)
• Bolt to remove the gear unit (C)
2. To remove the gear unit from the
machine shaft, tighten the bolt (C).
3. To move the gear unit, refer to
section
On-site transport
on page
23.
Removal of the gear unit
50
IM_405_002_EN
