LET'S TURN ON THE MACHINE
3_5b K101
3-5b
FORW ARD
P.FOOT T.CUT
MENU
ENT.
3
ID:10 Nd: 4
BIRD
G
FORW ARD
P.FOOT T.CUT
MENU
ENT.
[Frame] Tubular
Other
1
ON
OFF
FORW ARD
P.FOOT T.CUT
MENU
ENT.
Caution !!
Frame no limit
4
FORW ARD
P.FOOT T.CUT
MENU
ENT.
[Frame] Tubular
Other
2
Non registered
In case Non Registered Frame is selected, carriage does not have movement for creating the
coordinates of frame position at the time of turning machine on.
Please select Non Registered Frame, when you need use special frame which can hit pressure
foot or other machine parts by movement of carriage for creating the coordinates of frame posi-
tion.
The following functions is canceled by selecting Non Registered Frame;
* Restore the position at the time of power failure
9-2
* Autostop function when movement exceeds the carriage limit.
Except using special shape frame, please do not select Non Registered Frame.
In case you have operation mistake, needle and/or pressure foot may hit frame and machine
and/or frame can be damaged.
When you need to change from Non Registered frame to other type of frame, please powor
machine off and start again.
Without re-starting machine, machine will move incorrectly.

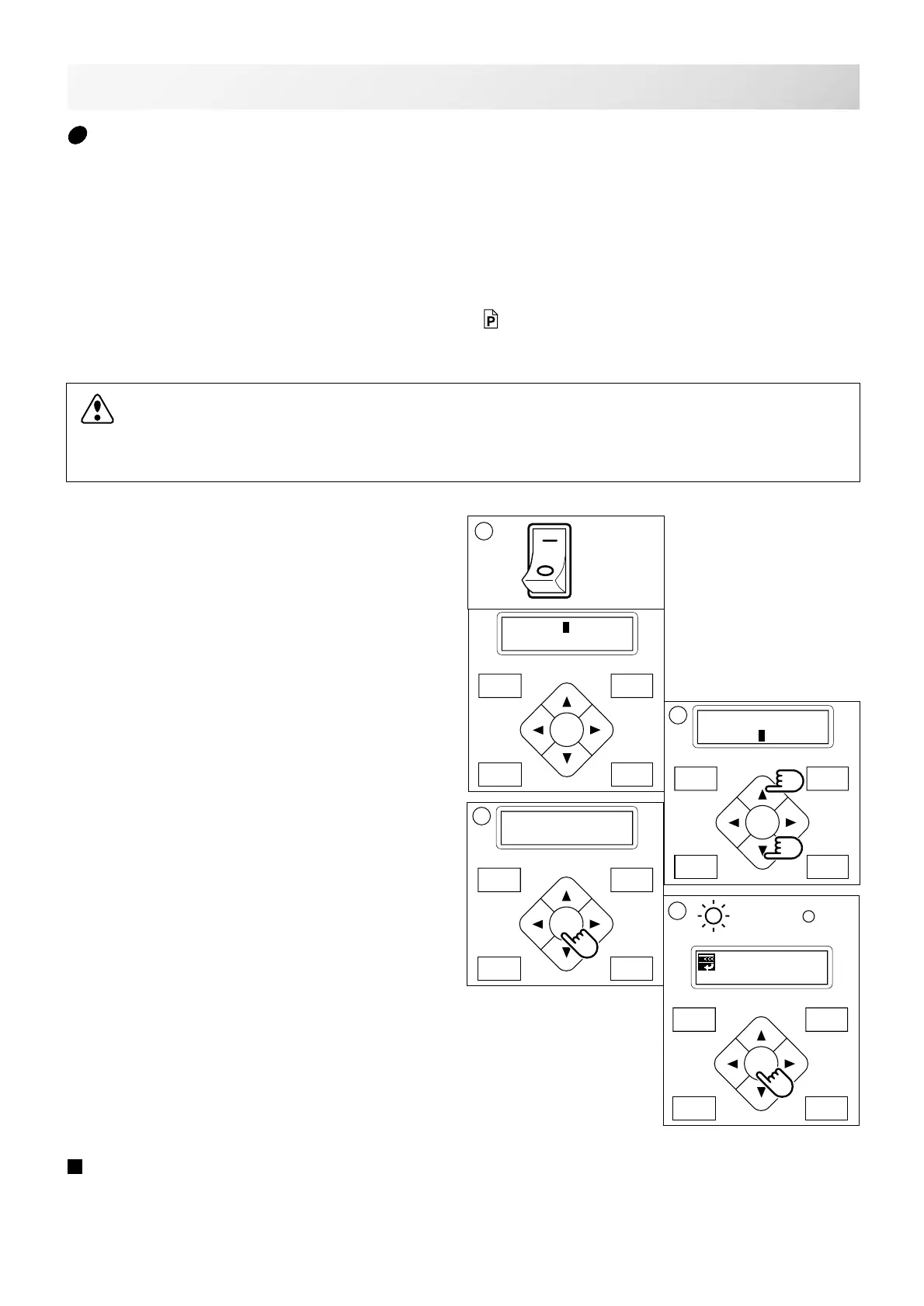

1. Turn on the power switch.
2. Press the “Up” or “Down” Arrow button until
the cursor points to "Other" (Non regis-
tered).
3. Press the "ENT.” button.
4. Press the "ENT.” button.
