CAP FRAME (OPTION)
7_9 E201
Hold lever
Cap strecher
Cap hold frame
Hold lever
Hooping caps

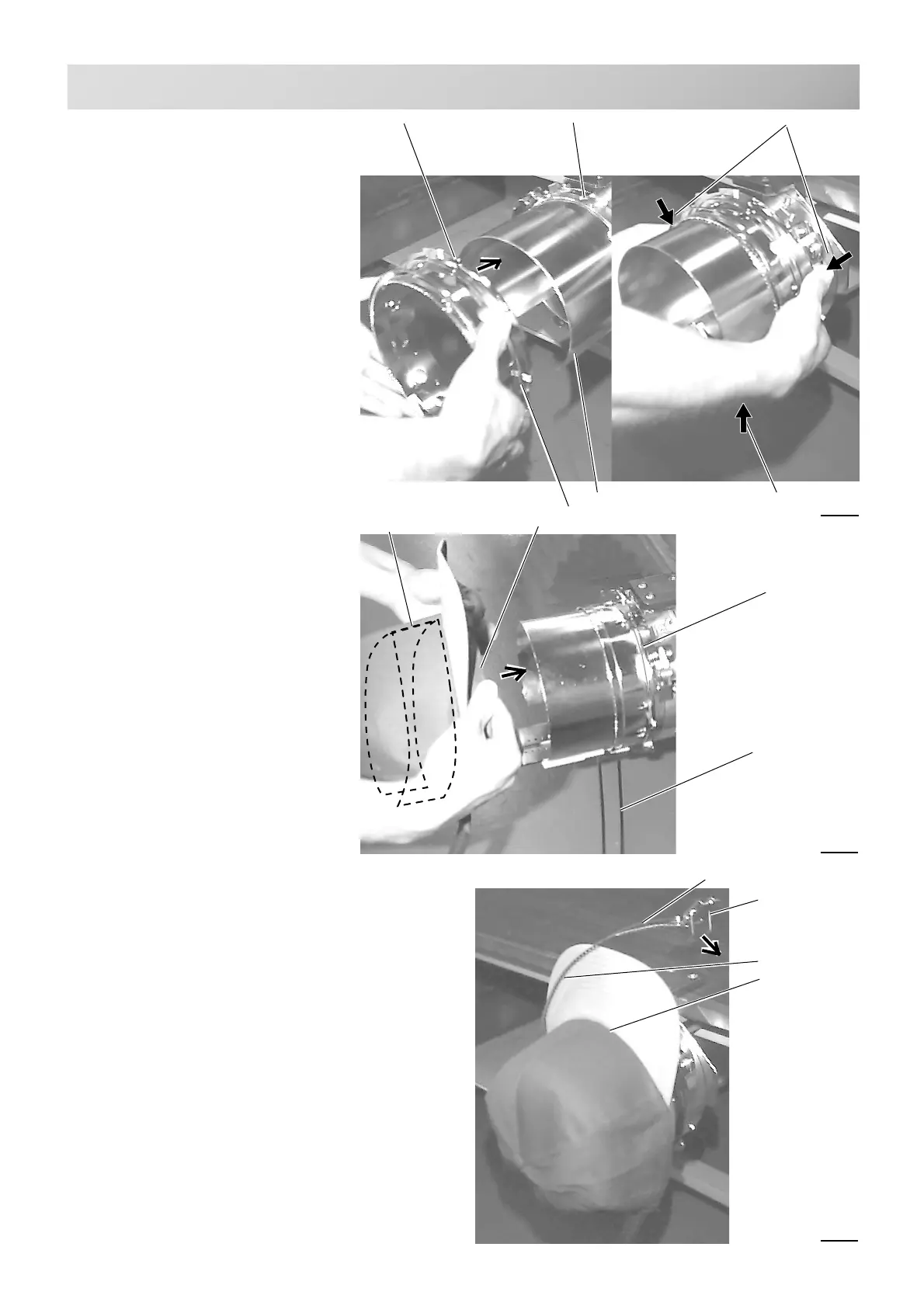

1. Place cap stretcher securely on
sturdy work bench.
2. As shown in Fig. 1, hold cap
hold frame with both hands and
place on cap stretcher. By
pushing hold lever at 3 places
in arrow marks with fingers,
place cap hold frame so that
center guide of cap stretcher
gets in concave of upper cap
hold frame.
Confirm that cap holder frame is
securely placed on cap stretcher
without gap.
3. As shown in Fig. 2, remove cap
grip and keep open to the left.
4. Extend fore half of liner inside
cap toward outward and place
on cap stretcher.
At this moment, place it so that
tip of liner contacts flange of
cap hold frame.
Please place one or two sheets of
nonwoven fabric (backing) of stan-
dard thickness under unstructured
caps.
The length of nonwoven fabric
should be some as one of round of
cap.
5. As shown in Fig. 3, place hook
so as to have visor of cap get in
gap between cap grips.
At this moment, set center of
cap to center mark on cap hold
frame so that notched portion
of clamp gets into seam of
visor.
Close hook.
Center guide
Concave
Hook
Cap grip
Seam
Notched portion
liner
Cap grip
Flange
Fig. 2
Fig. 3
Fig. 1
Nonwoven fabric
