HI 1756-W
S WEIGH SC
ALE M
ODULE
3-6

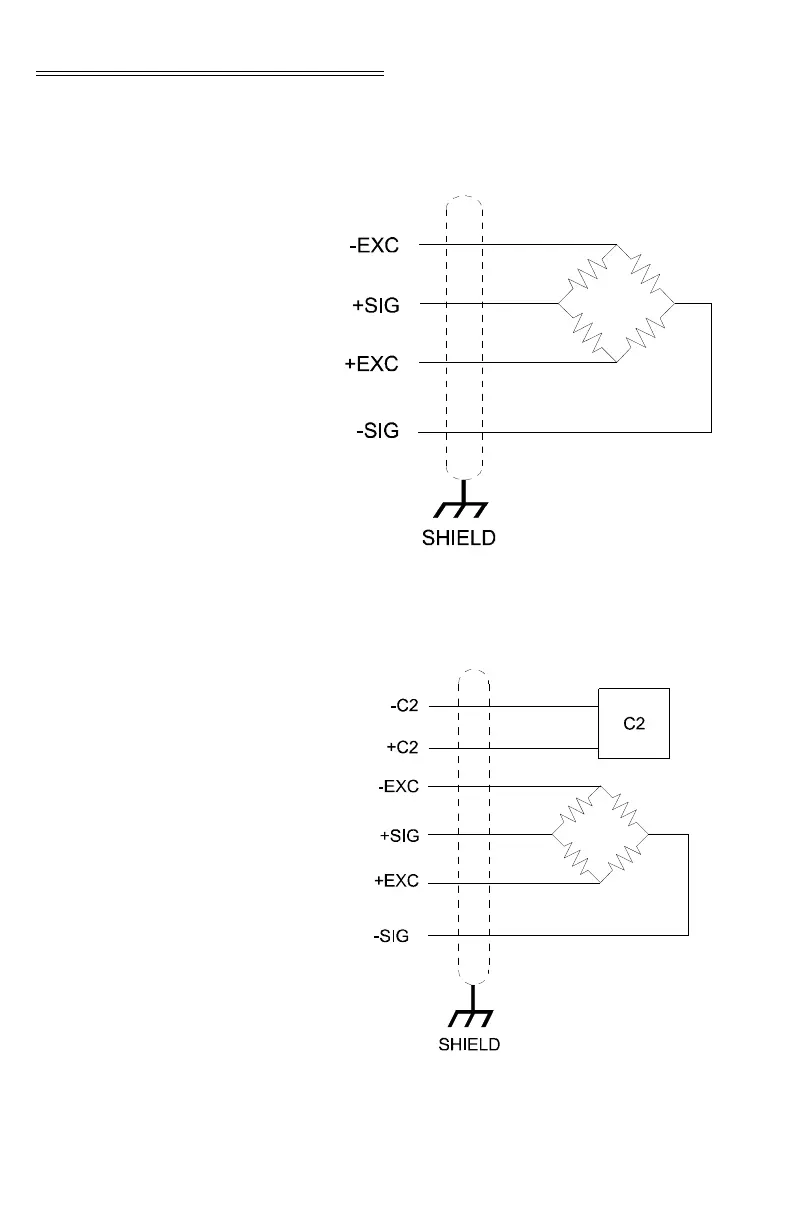

Load Cell Wiring
Diagrams
Industry St
andard
Load Cells
FIG
. 3-6 INDUSTRY S
TANDARD LOAD
CELLS
WIRING DIAGRAM
Hardy Load
Sensor with C2
FIG
. 3-7 HARDY LOAD SE
NSOR/C2 WIRING
DIAGRAM
23
25
