Hardy Instruments A Series User Manual

Chapter 3 - Installation
3-7
HI 1756 Remote
Terminal
Assembly
(HI 1756-XX-RT)
The RTA provides connection points between the HI
module’s cable assembly and the wires from the junc
-
tion box(es) or load sensor(s). It comes with a stan-
dard 35 mm Din Rail Mounting and requires at least a
5” inch DIN rail for mounting.

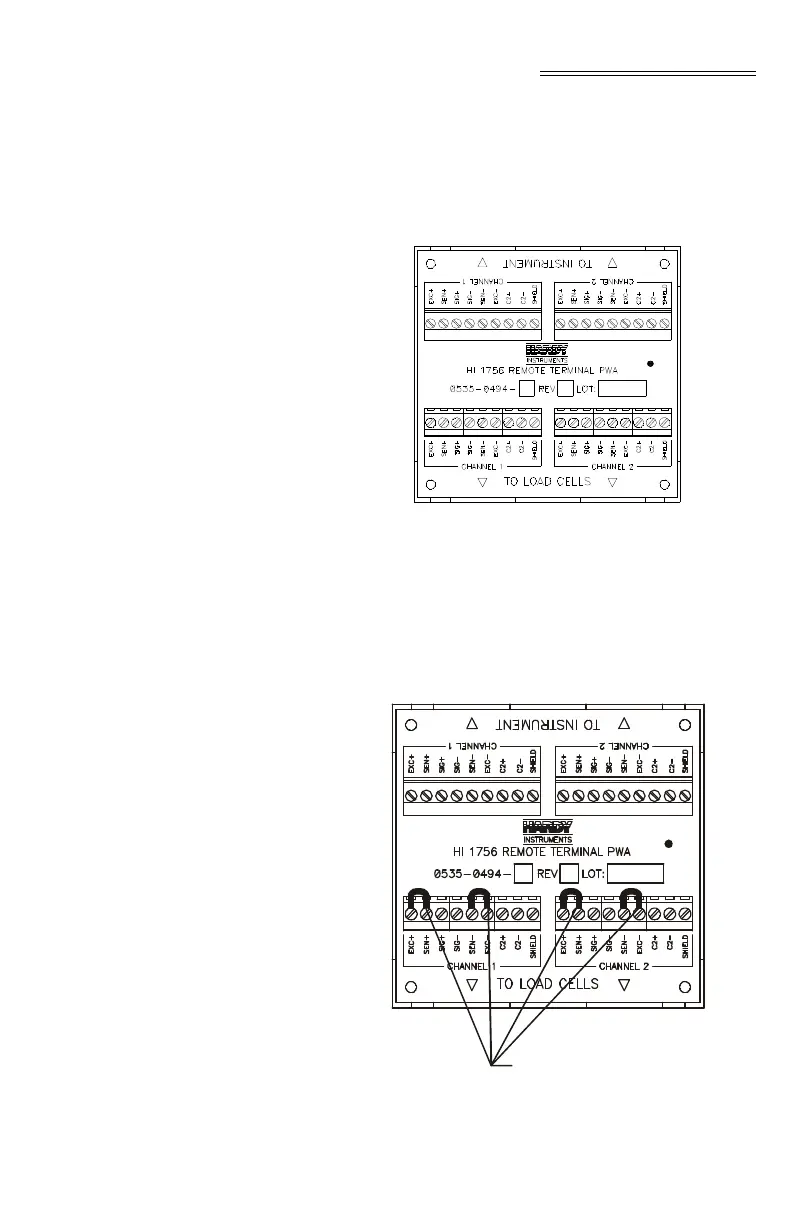

FIG. 3-8 REMOTE TERMINAL ASSEMBLY
NOTE: When using load cells that do not have sense lines you
will need to jumper the Sense (-) to the Excitation (-)
and the Sense (+) to the Excitation (+) for one or both
channels. (See Fig. 3-9)
FIG. 3-9 RTA WITH JUMPERS FOR LOAD
CELLS WITHOUT SENSE LINES
Jumpers
