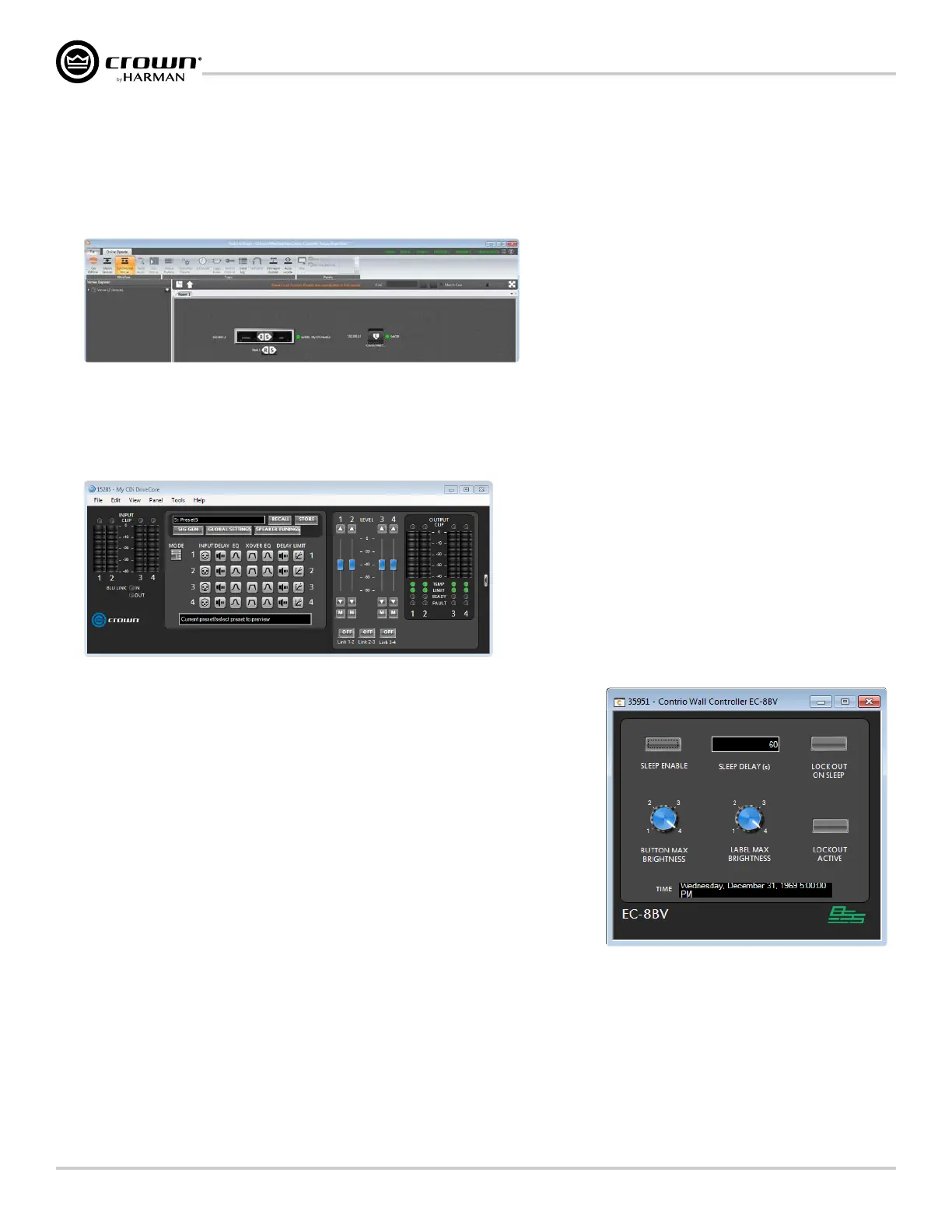

Page 52
CDi DriveCore Series Operation Manual
Using HiQnet Audio Architect
TIP: An alternative method for assigning parameters to the Contrio controller is to go back to the Room window, open the CDi DriveCore panel that
contains the controls to assign, then go back to the Contrio Wall Controller window and ctrl+click+drag each parameter from the CDi DriveCore panel
to the desired controller assignment slot.
13� Once programing is complete, go back to the Room window and click "Go Online" in the Offline Design ribbon at the top of the window.
14� Press the "L" icon that covers the controller image to load the program changes to the controller. Press the receive "R" or send "S" icon that covers the
CDi DriveCore amp image if prompted, as shown below.
TIP: Press "R" to receive settings from the amp or "S" to send the settings from Audio Architect to the amp. See "Going Online" on page 33
for more information about going online.
15� The Contrio controller should now be programmed to control the CDi DriveCore amp. Open the amp's control panel, by double-clicking the CDi
DriveCore amp image in the Room window, then verify that the Contrio controller is properly controlling the desired parameters. To make additional
changes to the Contrio controller programming, repeat the aforementioned steps.
TIP: Additional controller settings are available in the Contrio Wall Controller Default Control
panel (see Figure 62). This panel can be accessed by right-clicking the Contrio Wall Controller
image from the Room window and selecting "Show Default Control Panel". See the help file in
Audio Architect for additional information on Contrio controller functionality and programming.
Figure 62: Contrio Controller Default Control panel
