4. With a Phillips-head screwdriver, remove the screw att aching the card retaining device to
the chassis, as shown in Figure 5–12.

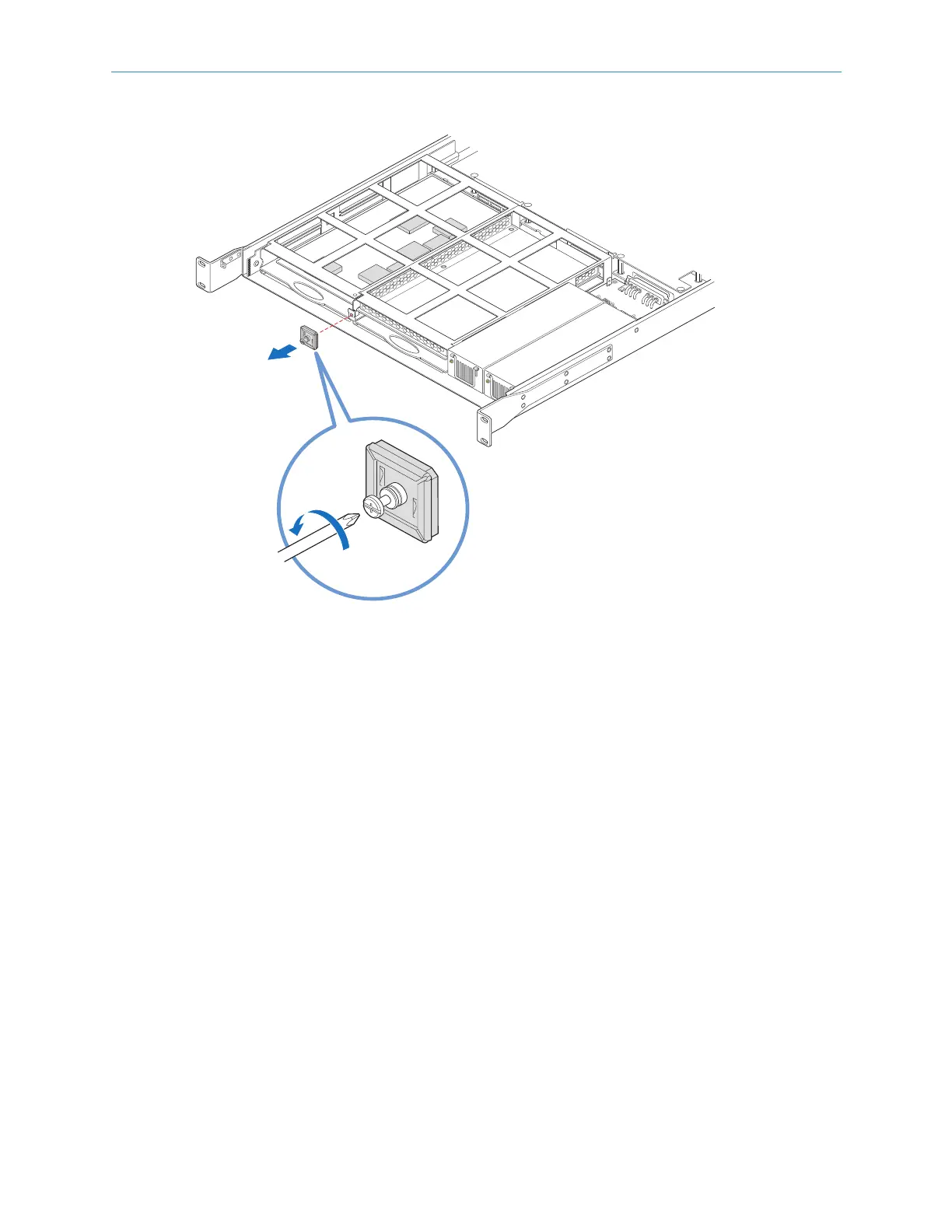

Figure 5–12: Removing the Card Retaining Device
5. If a mini-SDI connector is present, disconnect the connector identified in step 5 in
Figure 5–13.
