CFV 100C
User Manual
16. Flash Sync Input
For synchronization with mechanical shutters. Use the supplied flash sync input cable.
17. Flash Sync Output

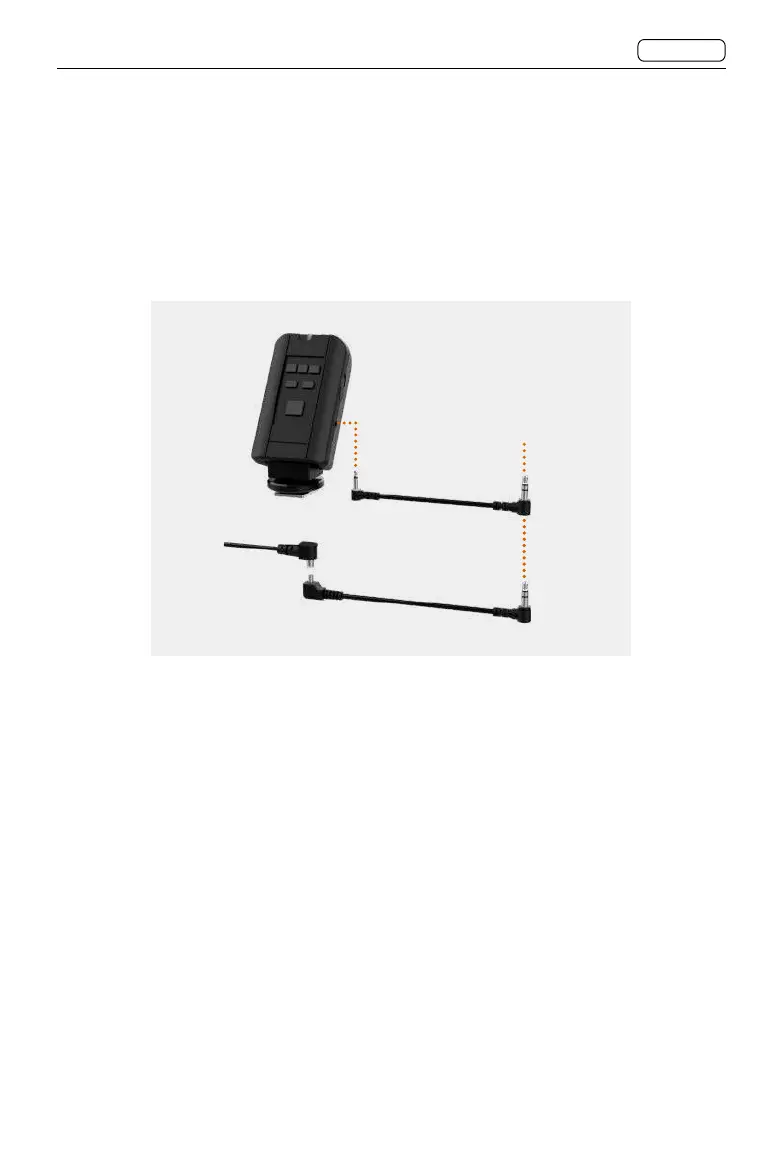

For connection of external flashes. Use the official flash sync output cable for cable
connected flashes. Wireless flash triggers with a 2.5mm plug can be connected using
the exposure cable CW. Max allowed voltage: 100VDC.
To flash sync output
From flash
Wireless trigger
Flash sync output cable
Exposure cable CW
18. ELX Output
For connection to an EL camera or the Winder CW to enable exposure remote control
from Phocus.
19. Hot Shoe Contacts
Mount the hot shoe adaptor to connect compatible devices such as a flash.
