Chapter V. Turbocharging System
Section I. Layout of the turbocharging system
15
Chapter V. Turbocharging System

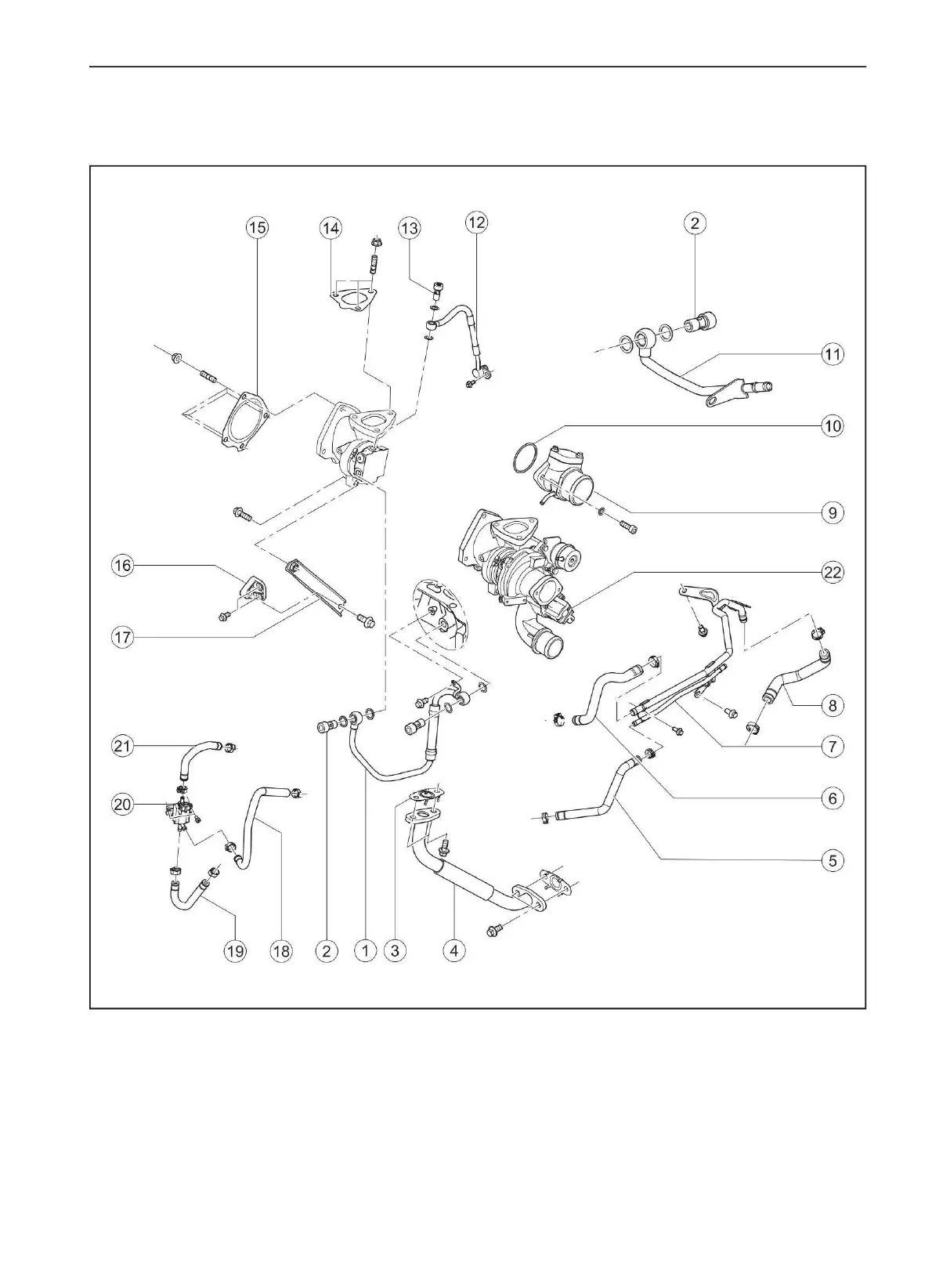

10 — a sealing ring of an inlet branch pipe of a
turbocharger
6 - Outlet hose I of the turbo cooling system
supercharger
1 - Inlet pipe of the turbo cooling system
supercharger
11 - Section I of the outlet pipeline of the turbocharger
cooling system
7 - Section II of the outlet pipeline of the turbocharger
cooling system
8 - Outlet hose of the turbocharger cooling system II
supercharger
2 - Bolt fitting of the inlet / outlet pipe of the turbocharger
cooling system
4 - Turbocharger oil outlet pipe
9 — an inlet branch pipe of a turbocharger
5 - Vacuum hose I
3 - Turbo oil outlet pipe gasket
