Chapter XI. Cylinder block

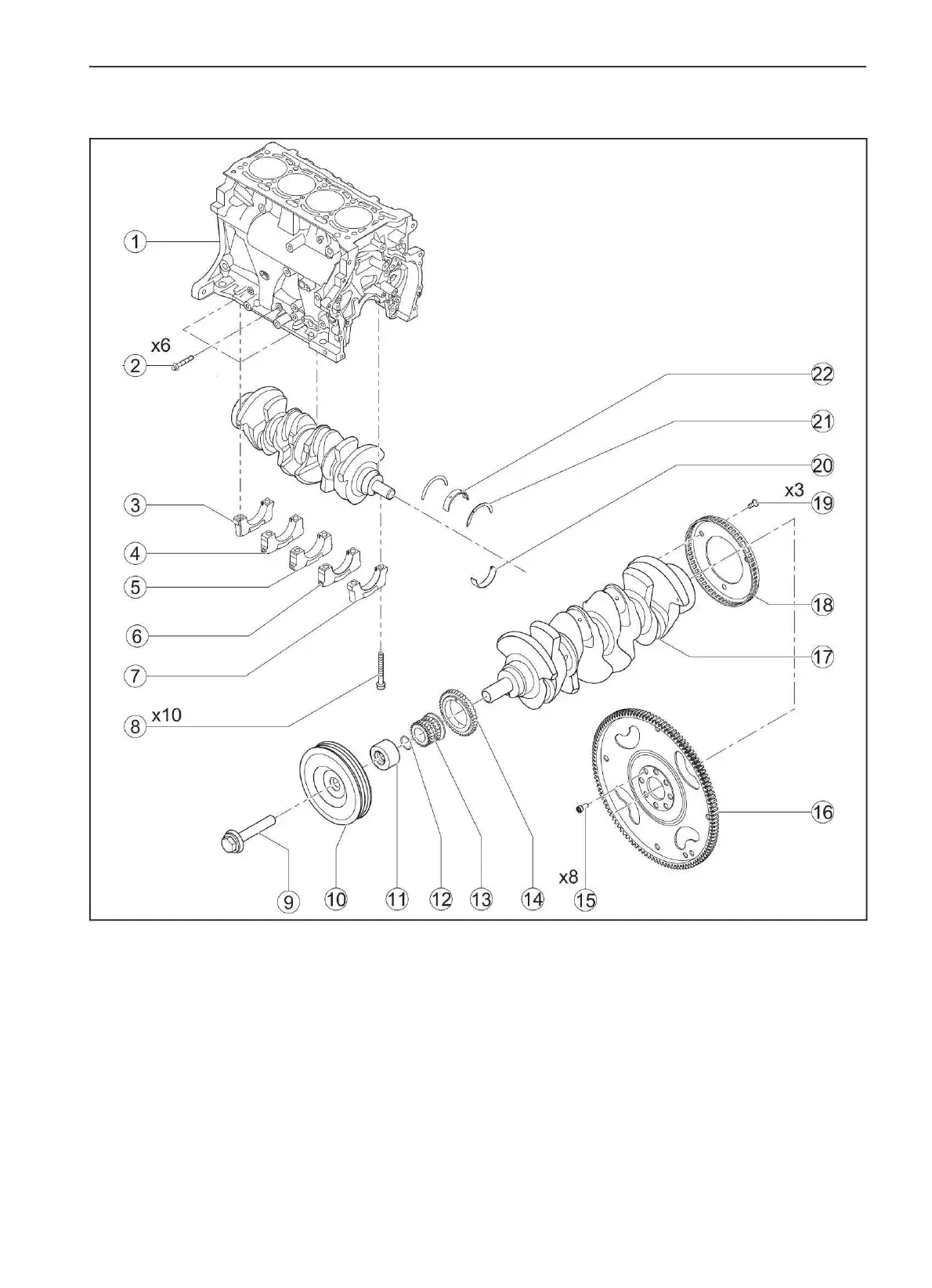

15 - flywheel mounting bolt 16 -
flywheel 17 -
crankshaft 18 -
crankshaft position sensor drive disk
crankshaft
1 - cylinder block 2 -
cylinder block horizontal pinch bolt 3 - fifth main bearing
cap 4 - fourth main bearing cap 5 - third main
bearing cap 6 - second main bearing cap 7 - first
main bearing cap 8 - main bearing cap bolt 9 -
crankshaft pulley bolt 10 - crankshaft pulley 11 -
bushing 12 - O-ring 13 - crankshaft sprocket 14 -
balance shaft drive sprocket
shaft
19 - screw for fastening the setting disk of the sensor
20 - lower main bearing shell 21 - thrust bearing
shell 22 - upper main bearing shell
Section IV. Crankshaft
101
