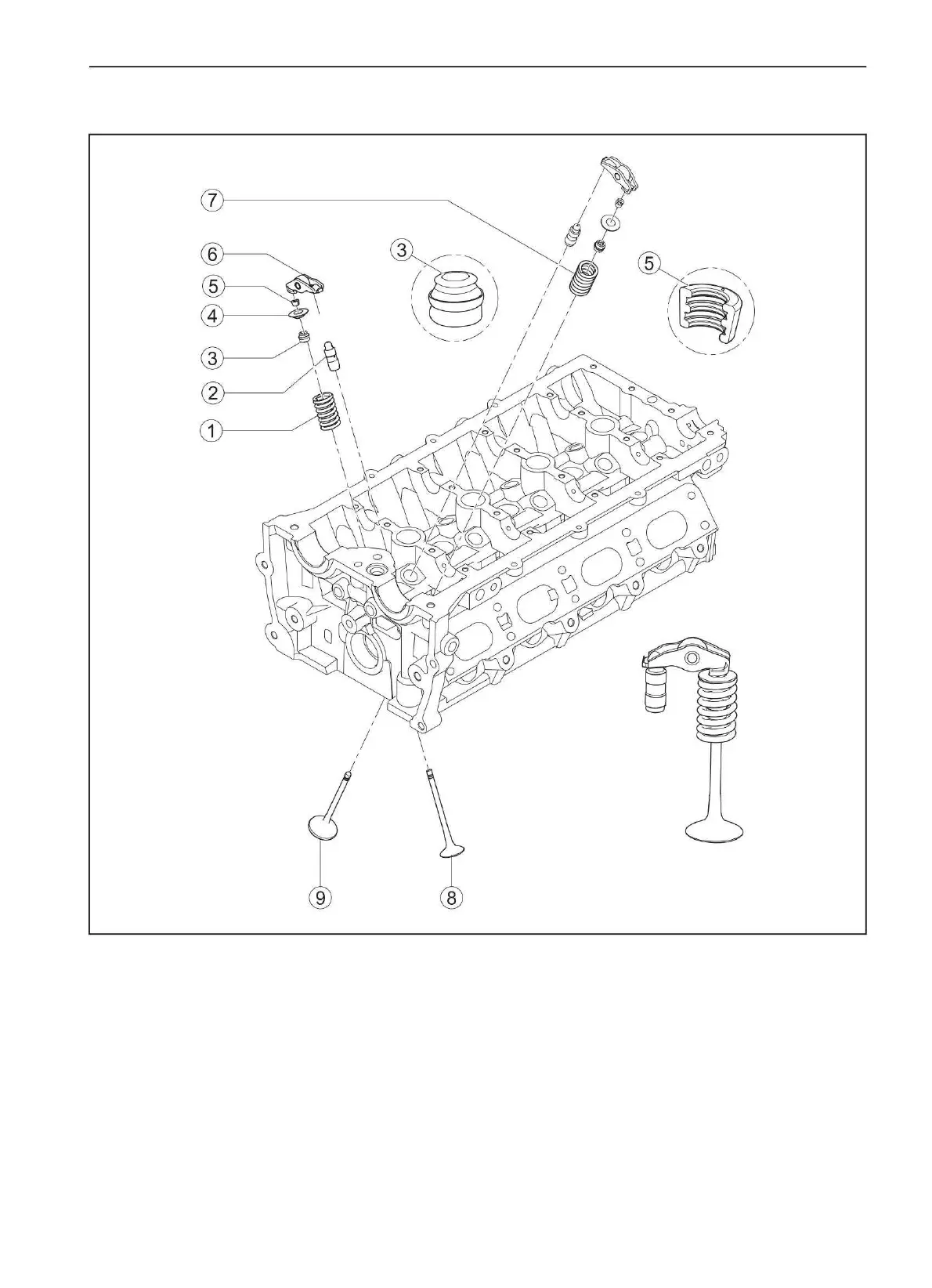

HAVAL 4S20 - Section III. Valve Mechanism

6 - Valve actuation lever 7 -
Inlet valve spring 8 - Exhaust
valve 9 - Inlet valve
1 - Exhaust valve spring 2 - Valve
clearance hydraulic compensator 3 - Oil
scraper cap 4 - Valve spring
plate 5 - Valve crackers
Chapter X. Cylinder head
Section III. valve mechanism
