HAVAL 4S20 - Section II. Exhaust System

Chapter VI. Intake and exhaust systems

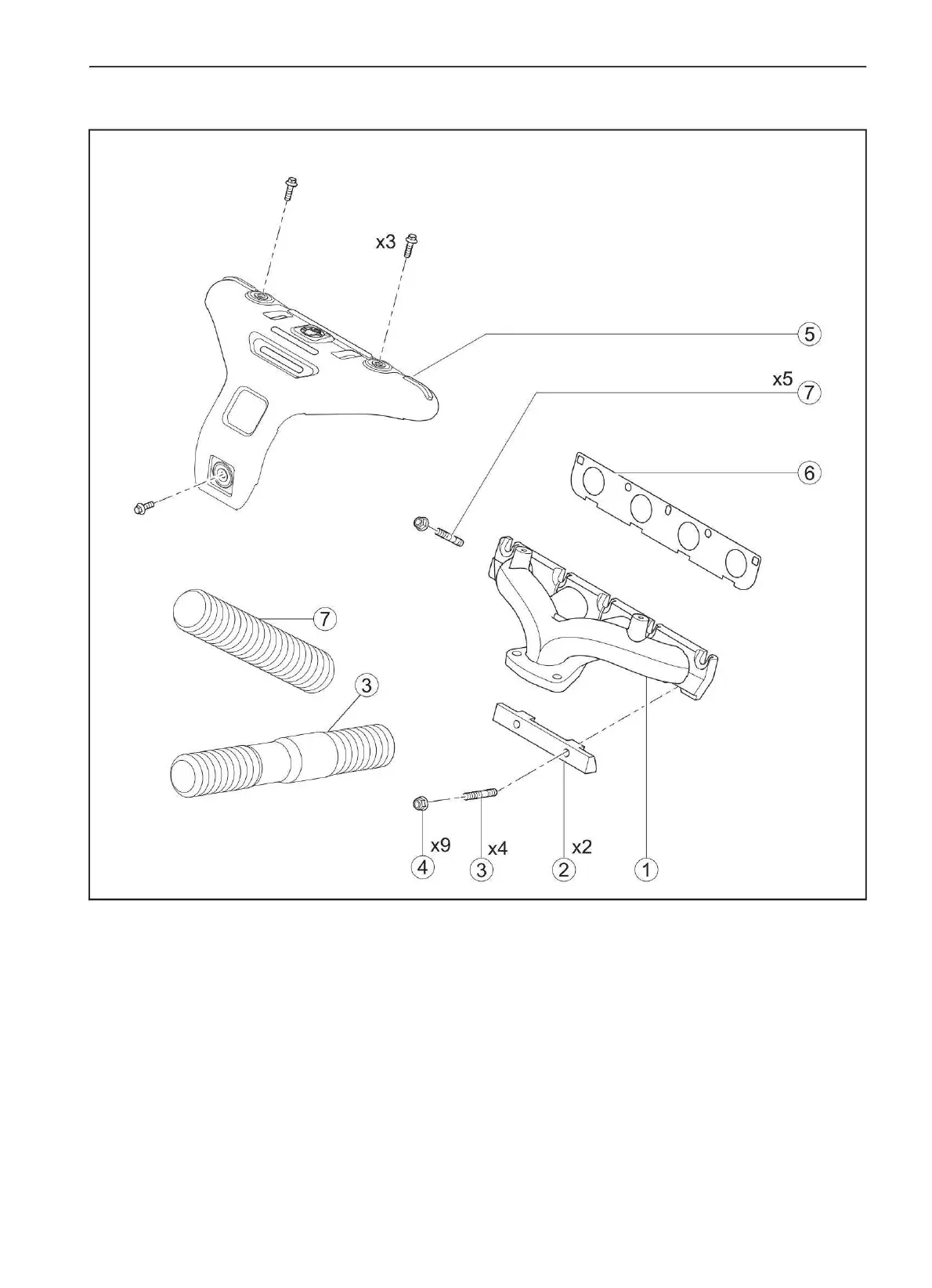

1 - Exhaust manifold 2 -
Exhaust manifold pressure block 3 - Threaded
stud II for fastening the exhaust manifold 4 - Nut
for
fastening the exhaust manifold 5 - Heat shield
for the exhaust manifold 6 - Gasket of the exhaust
manifold 7 - Threaded stud I for
fastening the exhaust manifold
27
Section II. exhaust system
