Chapter XI. Cylinder block
Section I. Piston connecting rod
Chapter XI. Cylinder block
87

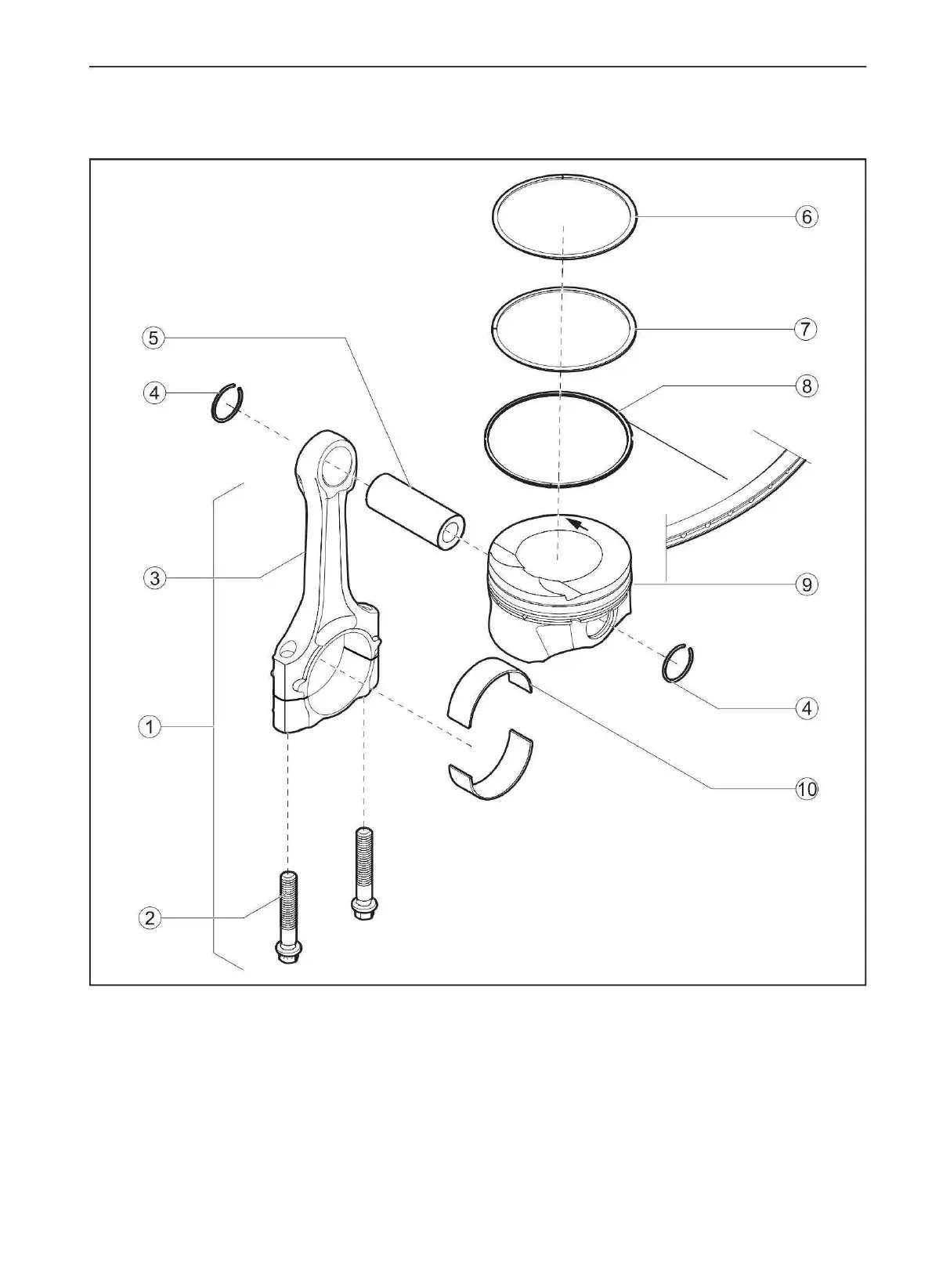

1 - Piston connecting rod
assembly 2 - Piston connecting rod
bolt 3 -
Connecting rod 4 - Piston pin circlip 5 -
Piston pin
6 - First compression ring 7 - Second
compression ring 8 - Oil scraper ring
9 - Piston 10 - Connecting
rod bearing
shell
