10. Installing the oil pump drive chain tensioner
sa
(a) Before starting the engine, check the engine oil and coolant
levels, and top up to the prescribed level if necessary.
crankshaft and oil pump.
working gases
12. Check for oil/coolant leakage and
(a) Fit the oil pump drive chain to the gears.
9. Installing the oil pump drive chain
11. Checking the moment of rotation of the crankshaft
(a) After installing the chains, check the turning force of the
crankshaft. Rated value: up to 12 N•m.
(d) Recheck the engine oil/coolant level after the engine has
cooled down and top up to the prescribed level if necessary.
gases.
ÿ Tightening torque: 15±1.5 Nm.
(c) After warming up, check for engine oil/coolant leaks or exhaust
noise and vibration.
(b) Start the engine and check for abnormal

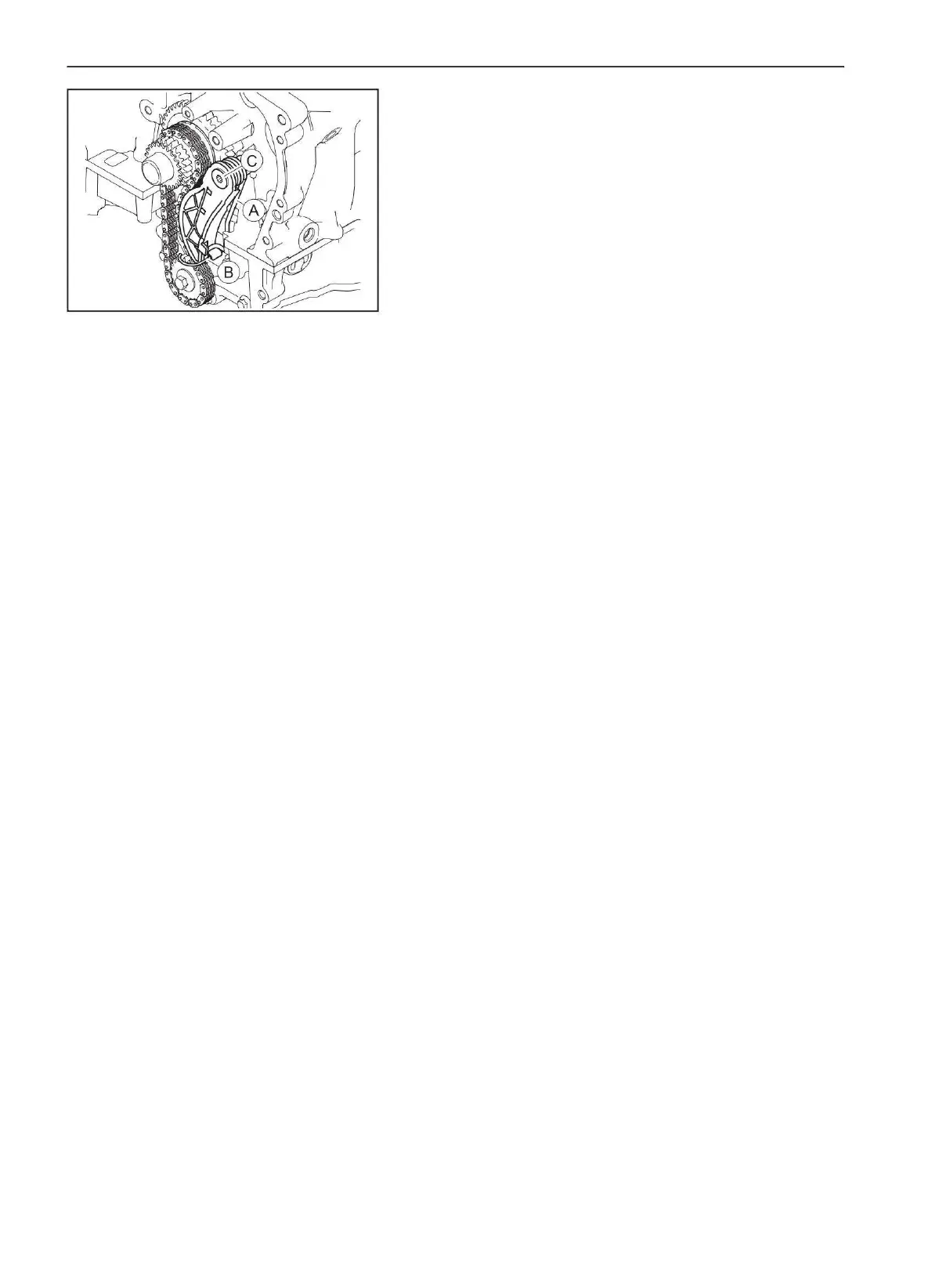

(a) Install the oil pump drive chain tensioner and secure with the
bolt (C), remove the pin (B), and insert one end of the spring
(A) into the groove on the top of the oil pan.
