HAVAL 4S20 - Section IV. Timing Chain

Chapter X. Cylinder head
Section IV. Timing chain
79

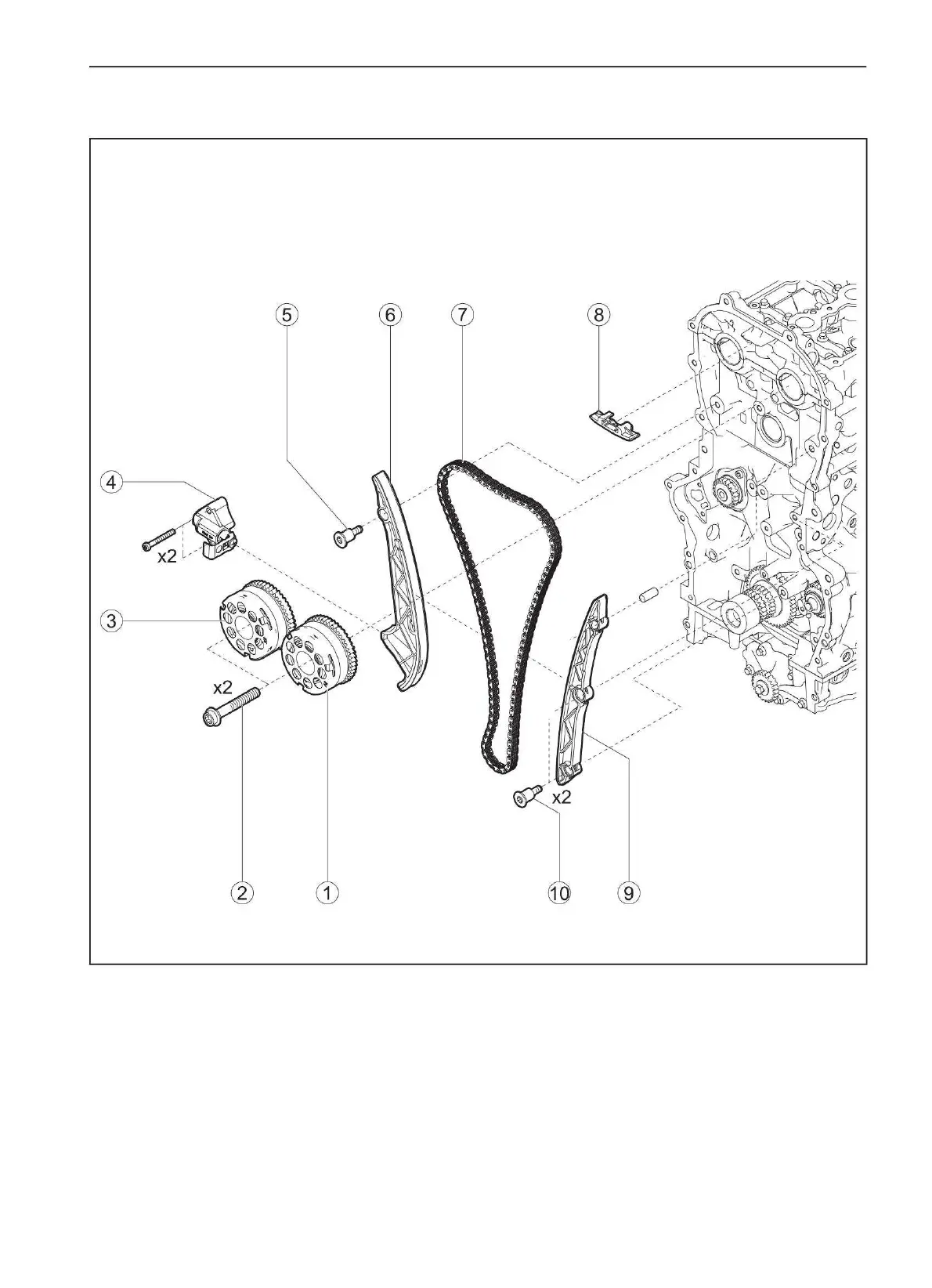

5 - Timing chain tensioner mounting bolt 6 - Timing
chain tensioner 7 - Timing chain 8 -
Upper timing chain
guide 9 - Timing chain guide 10 - Timing chain
guide bolt
1 - VVT intake valve phase shifter 2 - VVT intake valve
phase shifter bolt 3 - VVT exhaust valve phase
shifter 4 - Timing
chain tensioner hydraulic drive
