HAVAL 4S20 - Section V. Oil Pump Drive Chain and Drive Chain Balancer Shafts

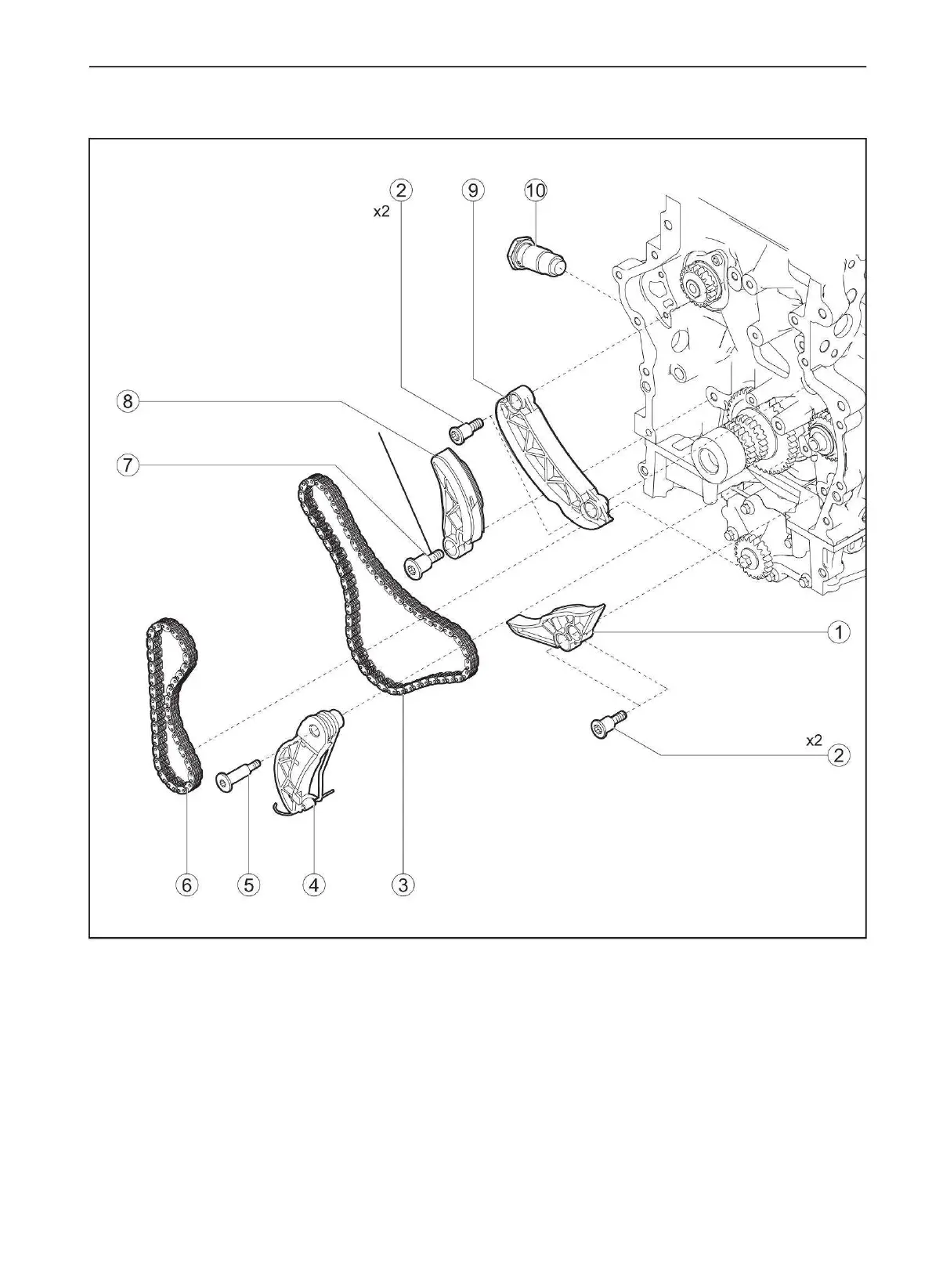

7 - Bolt for fastening the timing chain tensioner 8 - Balancer
shaft drive chain tensioner 9 - Upper balancer drive chain
damper
foot pump
6 - Oil pump drive chain
10 - drive chain tensioner drive balancing
shafts
1 - Balancer shaft drive chain guide 2 - Timing chain guide
mounting bolt 3 - Balancer shaft drive chain 4 - Oil pump drive
chain tensioner 5 - Oil drive chain tensioner
mounting bolt
shafts
Section V. Oil Pump Drive Chain and Balance Shaft Drive Chain
83
Chapter X. Cylinder head
