Hayward Control Station - Advanced Settings and Monitoring; Probe Calibration and Set Points

USE ONLY GENUINE REPLACEMENT PARTS
Page 17 of 20 Control Station Rev. A
Auxiliary relays
Measures
1 2 3
OK OK
4
OK
5 7 8
9
OK
10
OKOK
12 13
6
11
OK OK
14
15

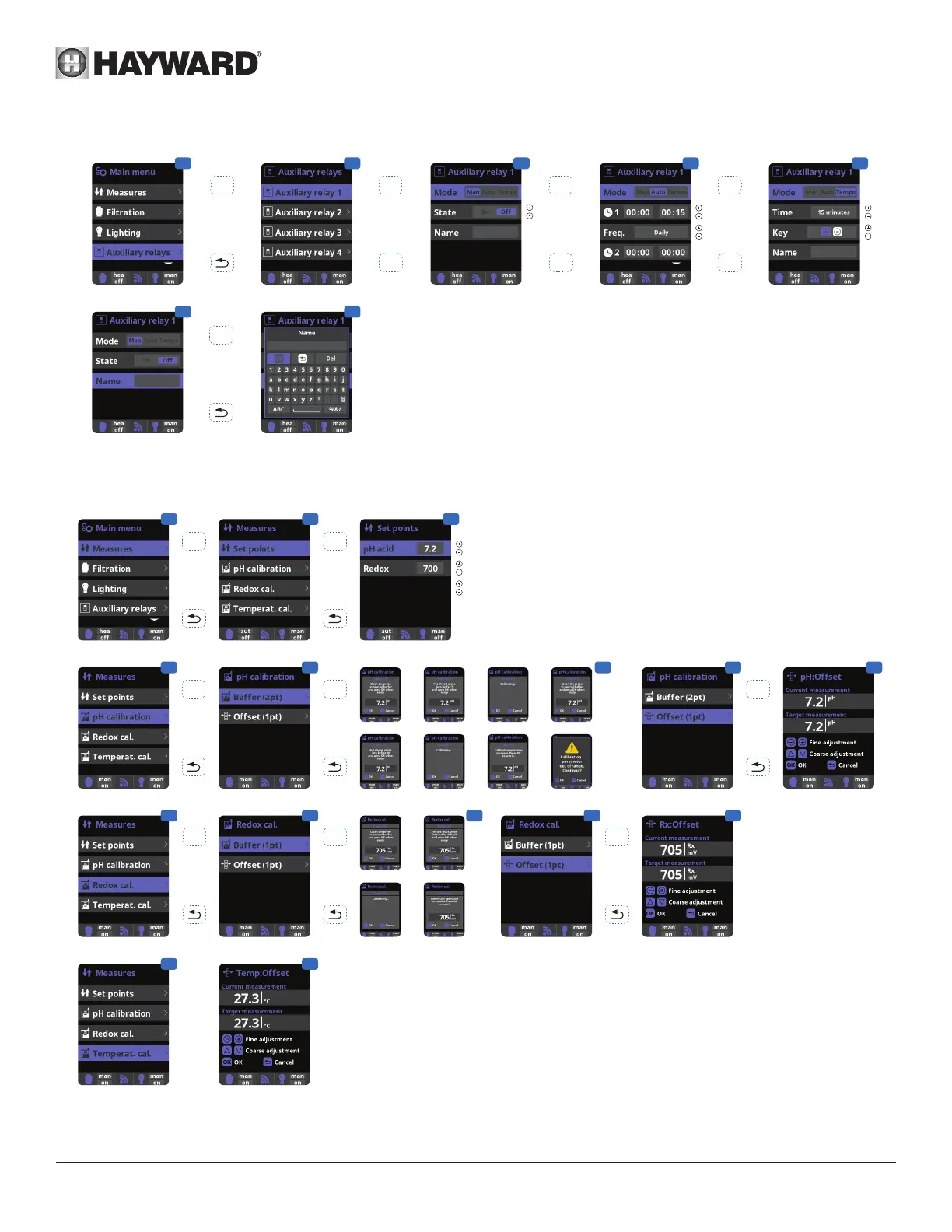

1 Measures: Adjustment of set points
and measuring probes.
2 Set points for each measurement.
3 Setting the set points.
4 pH probe calibration: Recommended
once a month during the pool season.
5 Calibration using buffer solutions
(liquids models pH7 / pH10 / neutral).
Follow the on-screen instructions
(g. 6).
7 Manual calibration: Allows you to set
the probes to 1 point (without buffer
solution) – recommended only for
adjusting small deviations in readings.
8 Without removing the
probe from the water, use
the + / - keys to adjust the
reading to your reference
value (photometer or other
measuring instrument).
9 Redox probe calibration:
Recommended every two months
during the pool season.
10 Calibration with reference solution
465 mV. Follow the on-screen
instructions (g. 11).
12 Manual calibration: Allows you to set
the probes to 1 point (without solution)
– recommended only for adjusting
small deviations in readings.
13 Without removing the probe from the
water, use the + / - keys to adjust
the reading to your reference value
(photometer or other measuring
instrument).
14 Temperature probe calibration:
Allows you to set the probes to 1
point.
15 Without removing the probe from the
water, use the + / - keys to adjust
the reading to your reference value
(thermometer). The same conditions
should apply for measurements.
1
2
3
4 5
OK
+
-
+
-
+
-
1 Auxiliary relays.
2 A maximum of 3 additional auxiliary relays (water
features, fountains, garden lighting, etc.) can be
controlled. This menu displays and allows you
to congure the relays that remain available on
your equipment.
3 Manual mode (ON/OFF).
4 Automatic mode: Starts up according to the
time slots used to set the start and end times.
They can be congured with the following
frequencies: daily, every 2 days, every 3 days,
every 4 days, every 5 days, weekly, every 2
weeks, every 3 weeks, every 4 weeks.
5 Timer mode: An operating time can be
programmed in minutes. Each time you press
the front panel key associated with the relay, it
will be activated for the programmed time. This
function is recommended for timing the operation
of spa blowers.
6 Relay name: It is possible to name the auxiliary
relays individually according to the associated
functions. On the keyboard, use the up/down
arrows to move the cursor vertically and the
+/- buttons to move the cursor horizontally. To
conrm, press OK.
6 6
OK
