8.9.2 MX471B pin assignment
1
5
6
9

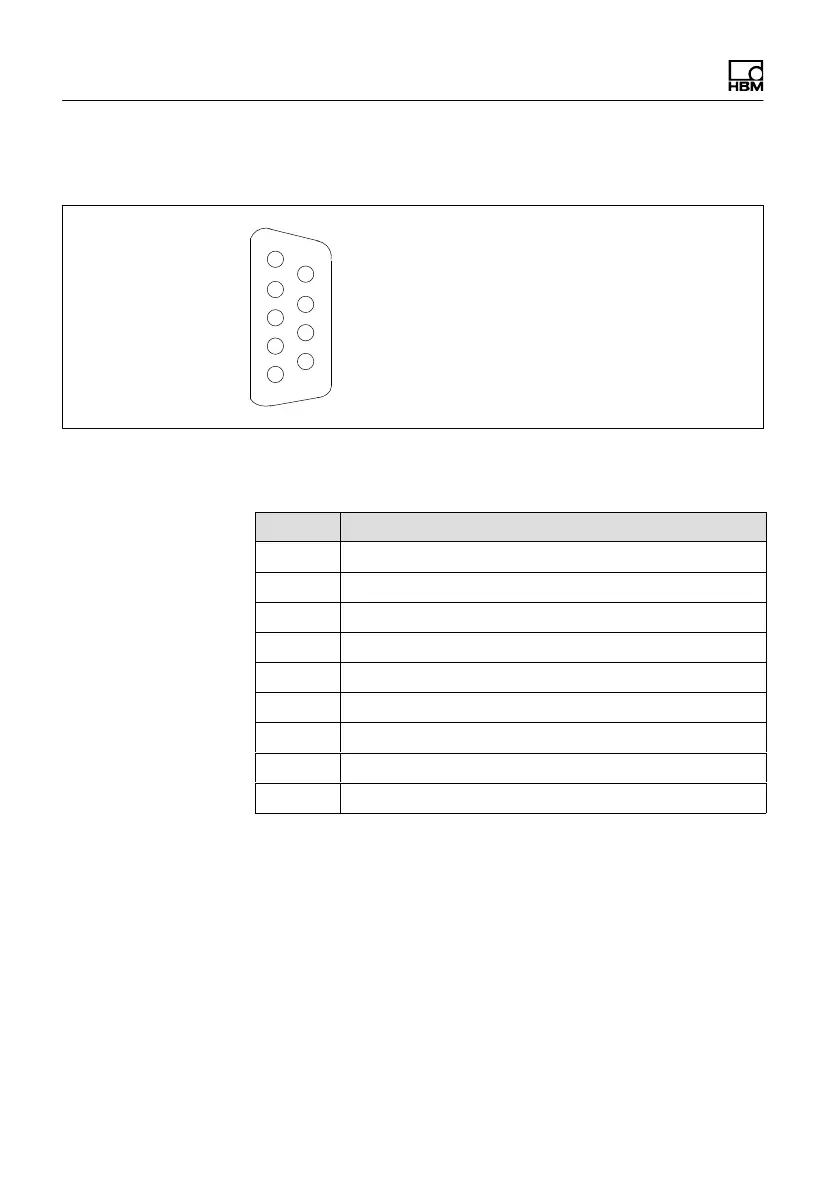

Fig. 8.14 Pin arrangement of connector plug, view from the
solder side
Pin Connector
1 No function
2 CAN Low
3 GND
4 No function
5 CAN Shield
6 GND
7 CAN High
8 No function
9 No function
