Mechanical
50 I3031-14.0 HBM: public Quantum
X
Fuse Protects
1 IEEE1394b FireWire X1 connection
2 IEEE1394b FireWire X2 connection
3 Slots 1 to 4
4 Slots 5 to 9
6.4.2 Backplane BPX001
A total of 10 drill holes are provided in the backplane for
wall mounting ( 6.5 mm). We recommend using the
outer 4 drill holes for wall mounting.
Notice
Only use countersunk screws for fastening. Otherwise
the modules cannot be mounted correctly.
449
407.75
318.75
229.75
140.75
56.75
85
36.25
147.5
220
6.5

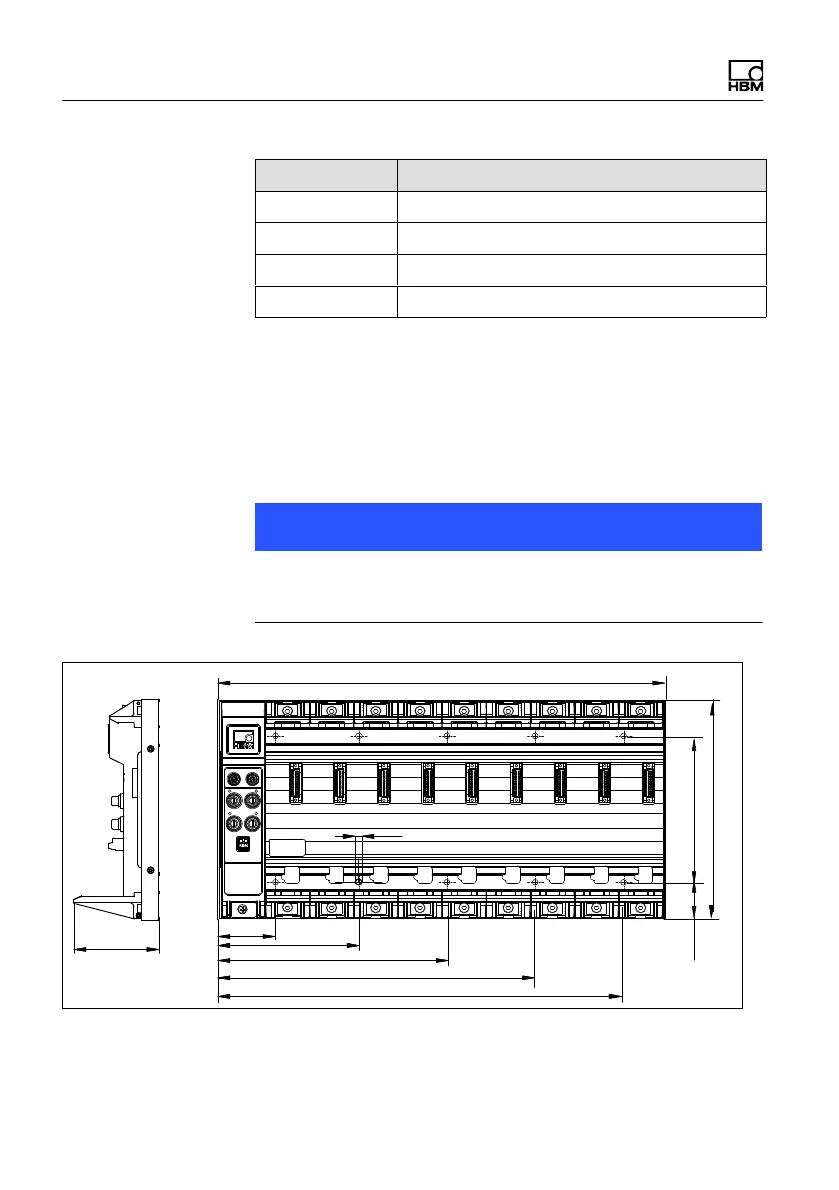

Fig. 6.13 BPX001 drilling pattern and dimensions
