I3031-14.0 HBM: public 217
12.5 Accessories for MX840B, MX440B

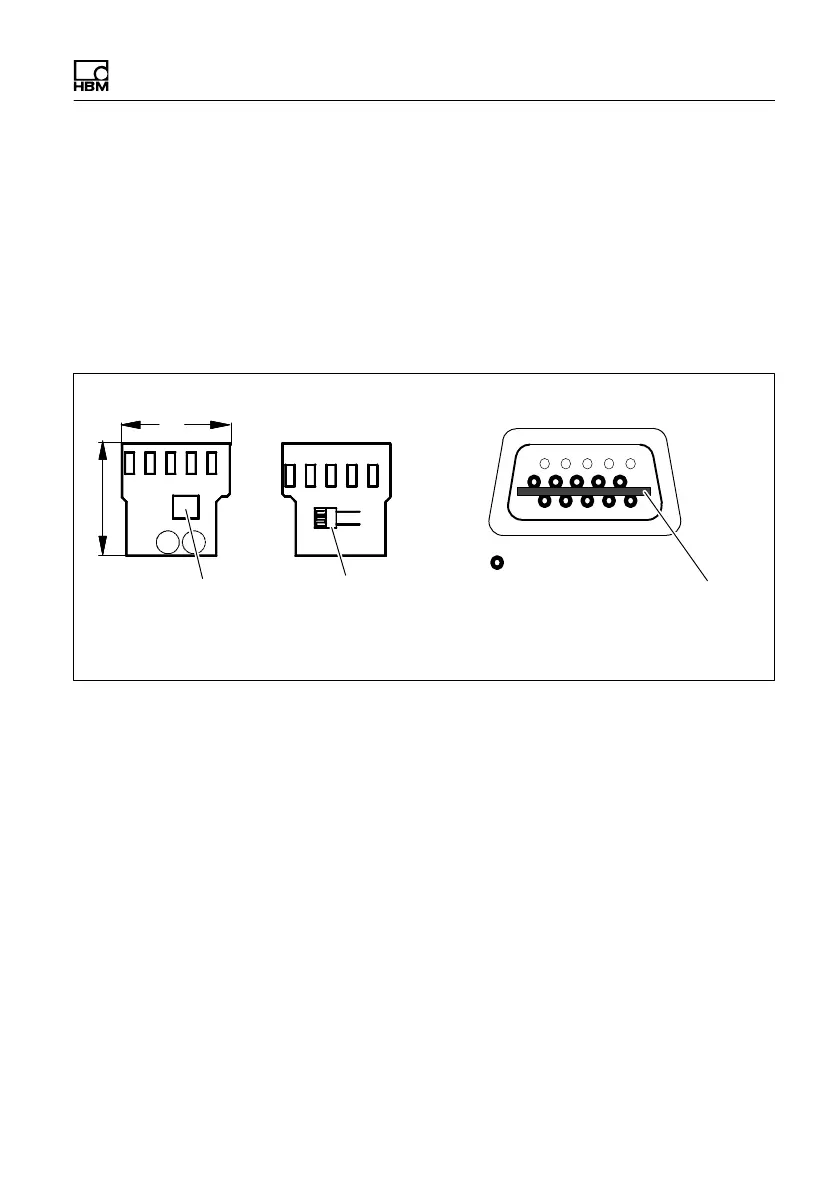

12.5.1 Cold junction for thermocouples
Electronics for temperature compensation for measure
ments with thermocouples. Board for installation in a
15-pin D-Sub-HD plug.
1
5
106
PINs to be soldered
View from above View from below
Cold junction
TEDS chip
12,5
12
All dimensions in mm
Height with components: 3 mm
Position of the board in
the plug (TEDS facing
down)
Order number: 1-THERMO-MXBOARD
