8.11.2 MX1615B status display
The front panel of the universal amplifier has a system
LED and 16 connection LEDs. The system LED indicates
the status of the device, the connection LEDs the states
of the individual connections.
System
LED
Connection LED
Connection LED

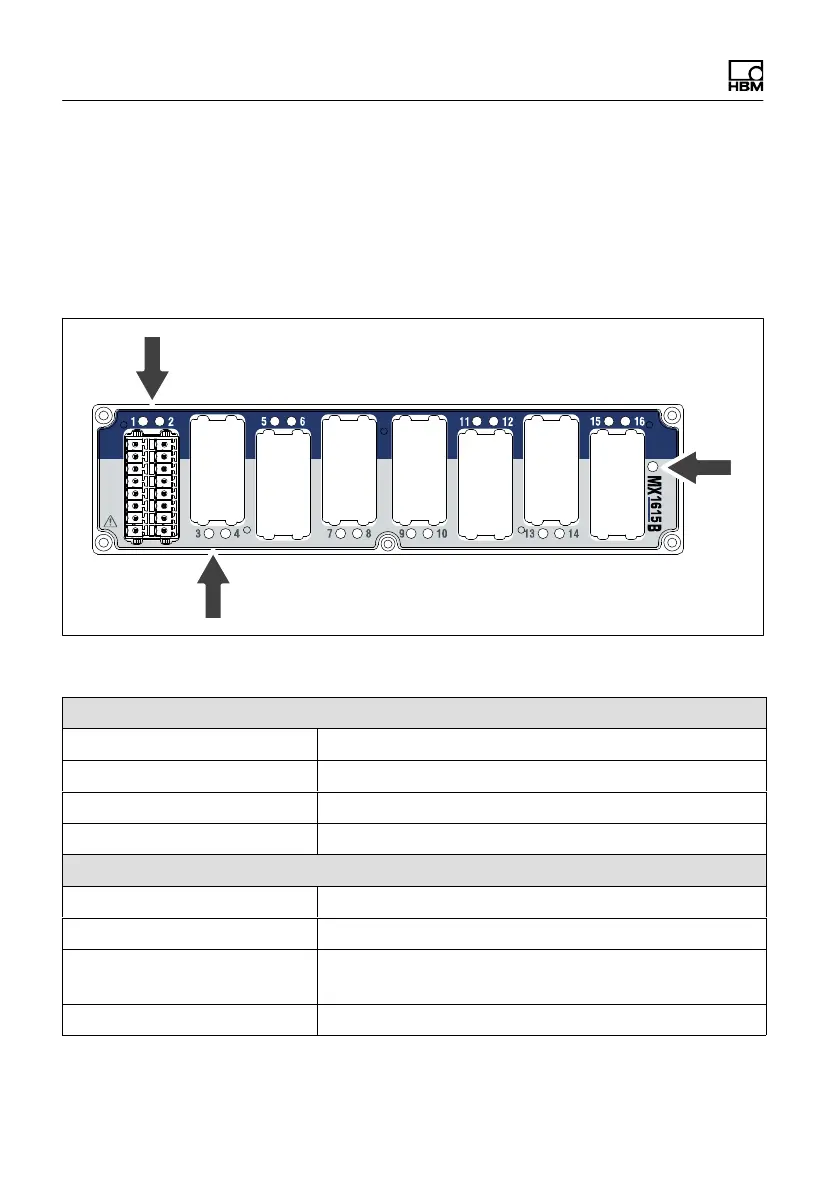

Fig. 8.19 MX1615B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification
running (calibration)
Green Error-free operation
