HBM MX1601B - Multiple Ethernet Connection with PTP Synchronization

Connecting individual QuantumX modules
Quantum
X
I3031-14.0 HBM: public 63
7.2.2 Multiple Ethernet connection with PTP
synchronization
Patch cable
Patch cable
10 V ...
30 V DC
10 V ...
30 V DC
10 V ...
30 V DC
PTPv2‐Switch
Ethernet

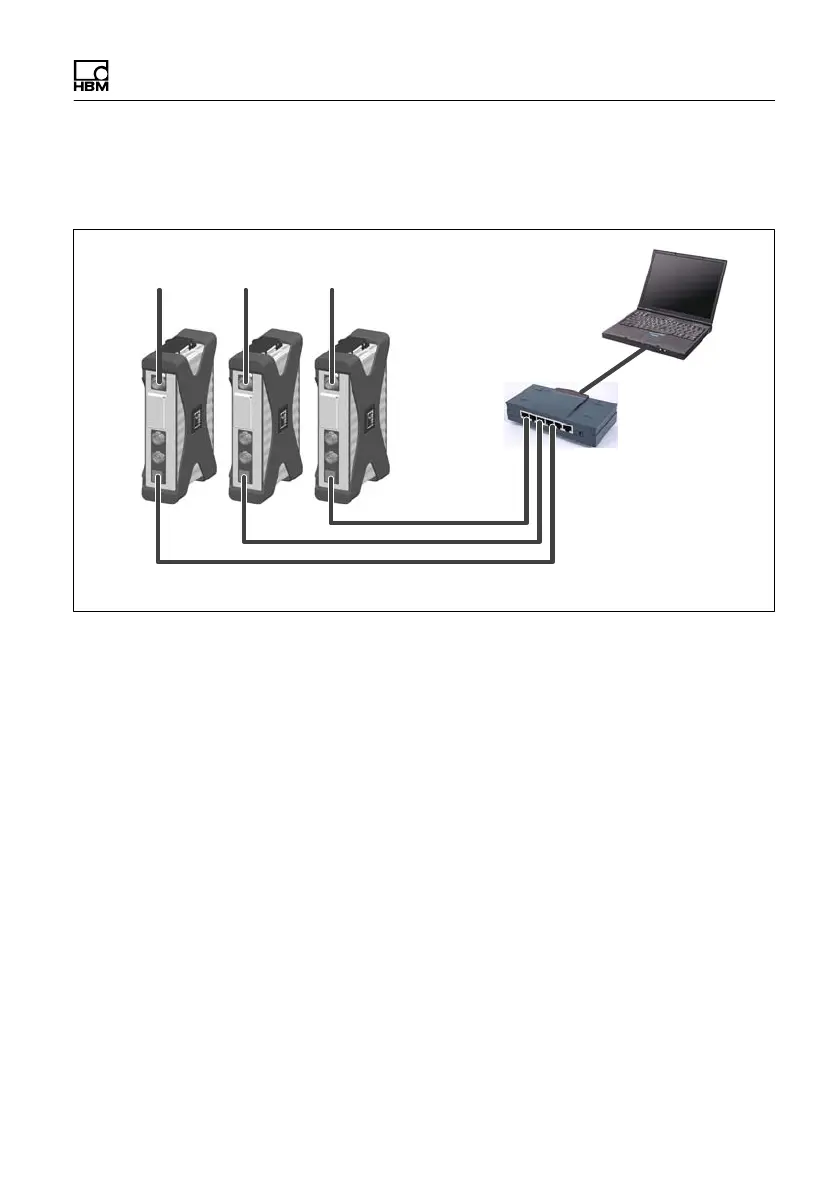

Fig. 7.3 Multiple connection via Ethernet and synchronization
via PTPv2
Modules can be connected to the PC via Ethernet
PTPv2‐compliant switches. We recommend patch
cables.
Here are some examples:
- EX23-R from HBM
- Scalance XR324-12M from Siemens
- RSP20 or MACH1000 from Hirschmann
- Ha-VIS FTS 3100-PTP from Harting
- Stratix 5400 from Rockwell
PTP Grandmaster Clock examples:
- LANTIME M600 from Meinberg
- OTMC 100 from Omicron
