Connecting individual QuantumX modules
82 I3031-14.0 HBM: public Quantum
X
measured values and deactivated filter for analysis while
the second signal with 5 kS/sec can be output via Ether
CAT®.
CX27
EtherCAT® master
KAB272
KAB272

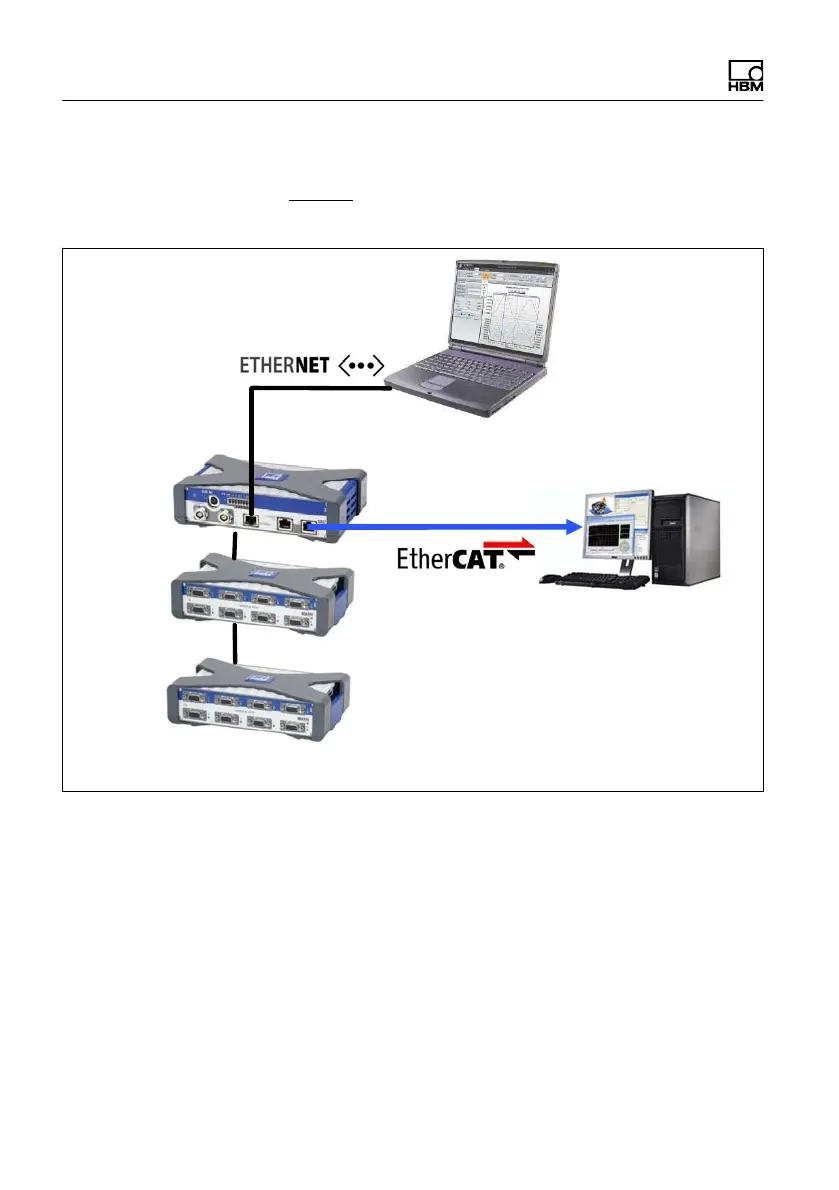

Fig. 7.12 Output in real time via EtherCAT® and in parallel via
Ethernet
7.2.14 QuantumX in the FireWire group
The number of modules connected in series (daisy chain)
is limited to 12. If you want to connect more modules
(maximum 24), you must use hubs. Hubs are devices
