Functions and outputs
178 I3031-14.0 HBM: public Quantum
X
Peak value function
Each peak value detection unit can monitor either the
Min peak or the Max peak of one of the module's 4 ana
log input channels. A peak value unit may operate in dif
ferent modes:
S EXPORT: peak values will be continuously updated
S HOLD: last peak value will be "frozen"
S PEAK VALUE: peak value detection enabled
S FOLLOW: peak value detection disabled, i.e. the
channel returns the original signal of the input channel
The following combinations are possible:
RUN MAX PEAK VALUE
HOLD MAX PEAK VALUE
FOLLOW HOLD MAX
This also applies to minima.

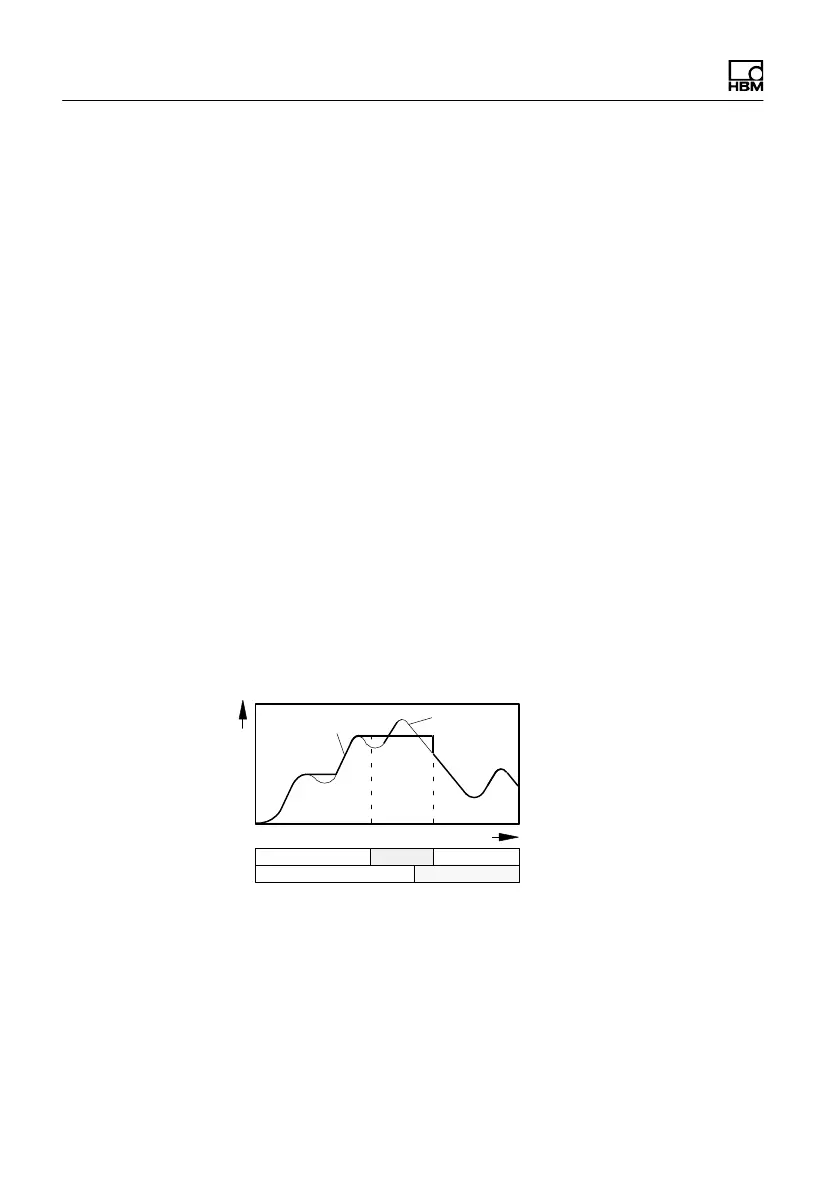

Graph for the peak value function
Measurement
signal
Output
t
V
i
, V
o
HoldRun Run
Function
Operating mode
Peak value
Follow
Function for Root Mean Square (RMS) calculation
RMS is computed from one of the module’s 4 analog
input channels according to the formula:
