Mechanical
48 I3031-14.0 HBM: public Quantum
X
The individual modules can also be connected via Ether
net (RJ45) through the openings on the back of the back
plane. FireWire interfaces of the individual modules are
actively connected to each other.
The modules can be positioned anywhere in the back
plane. The backplane BPX001 is designed for wall or
control cabinet installation and has drill holes for attach
ment. The BPX002 backplane for rack mounting in a 19”
enclosure. The BPX002 backplane is an extension of the
BPX001.
Slot 1
Slot 9

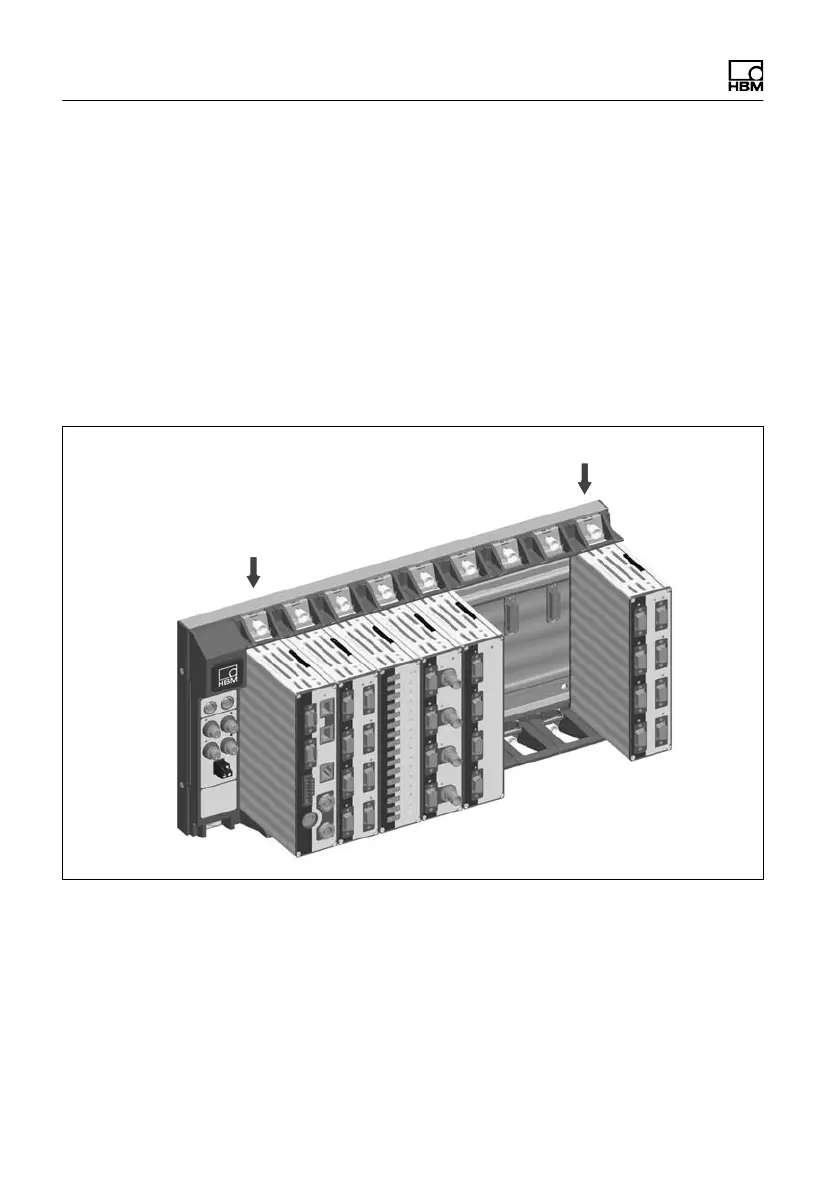

Fig. 6.11 Example of QuantumX backplane fitting
