Connecting individual QuantumX modules

Quantum

I3031-14.0 HBM: public 69

Module settings

PC settings

Automatic

configuration

Manual

configuration

Module settings

PC settings

172.21.108.1

255.255.248.0

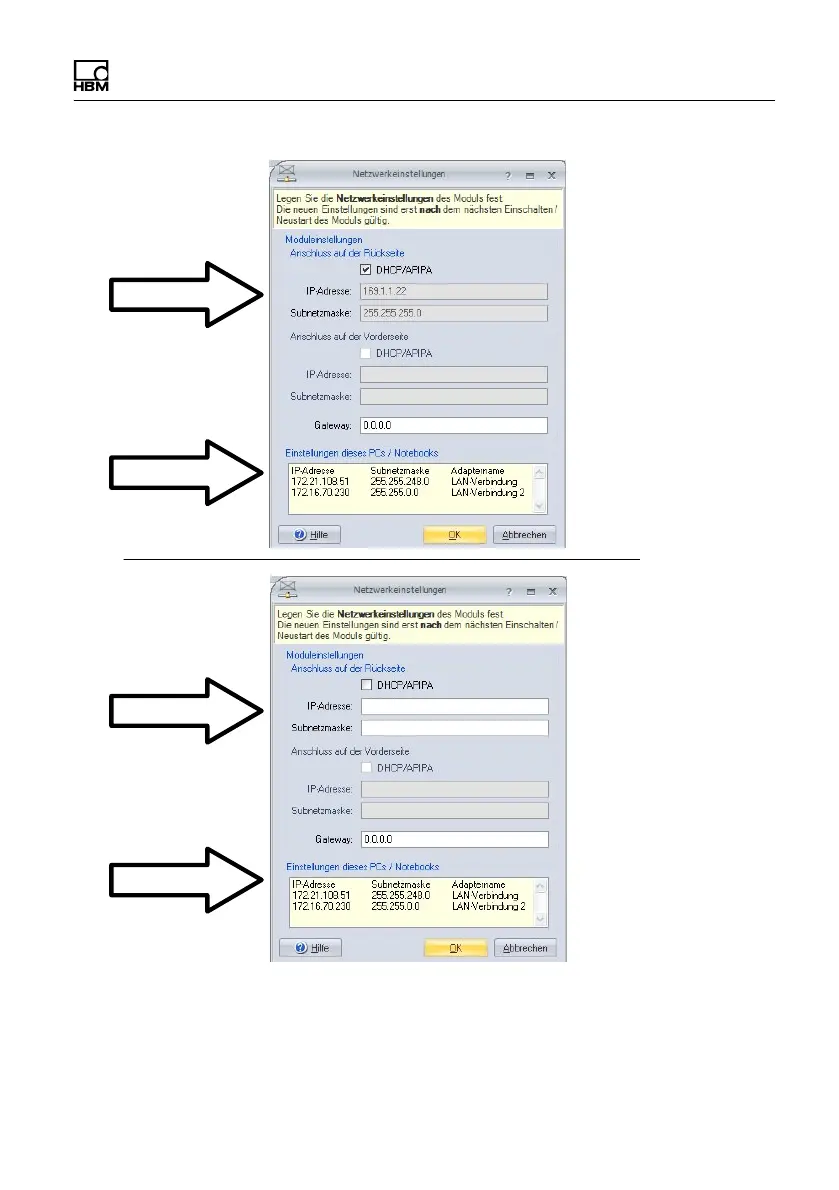

Fig. 7.5 Example of settings for a direct connection
