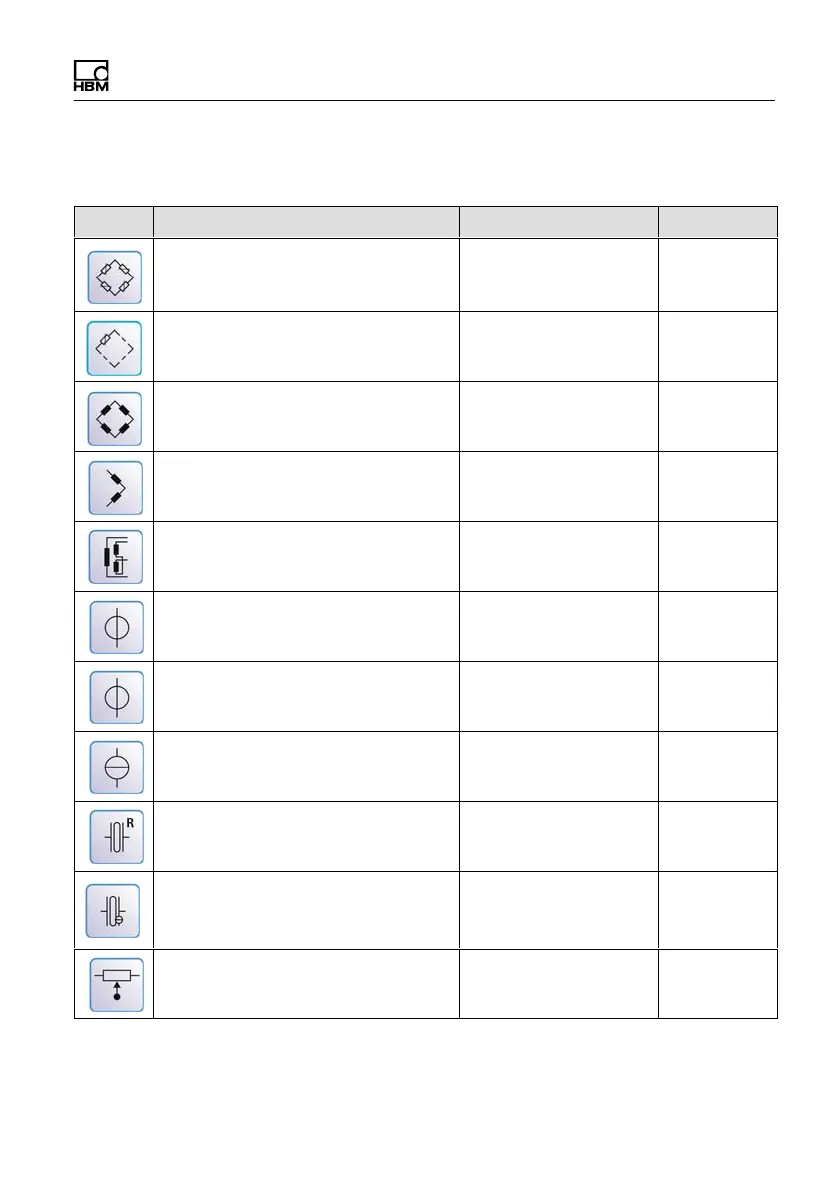

HBM MX1601B - Page 97

Modules and transducers
Quantum
X
I3031-14.0 HBM: public 97
MX840B connectable transducers
Transducer type Connection sockets See page
SG full bridge 1 ... 8 138
SG quarter bridge via external ad
apter
1 ... 8 143
Inductive full bridge 1 ... 8 139
Inductive half bridge 1 ... 8 142
LVDT 1 ... 8 147
Electrical voltage 1 ... 8 150, 151
High-voltage via external adapter
(300 V CAT II)
1 ... 8 153
Electrical current 1 ... 8 154
Piezoresistive transducer 1 ... 8 140
Current-fed piezoelectric transducer
(IEPE, ICP®) via an external ad
apter
1 ... 8 148
Potentiometer 1 ... 8 146
