4.4 MX1609KB-R Thermocouple Amplifier
Up to 16 type K thermocouples (Ni-CrNi) can be connected to the MX1609KB-R
module for measuring temperatures.
Transducer MX1609KB-R Wiring diagram
Thermocouple
●
K-type only
80

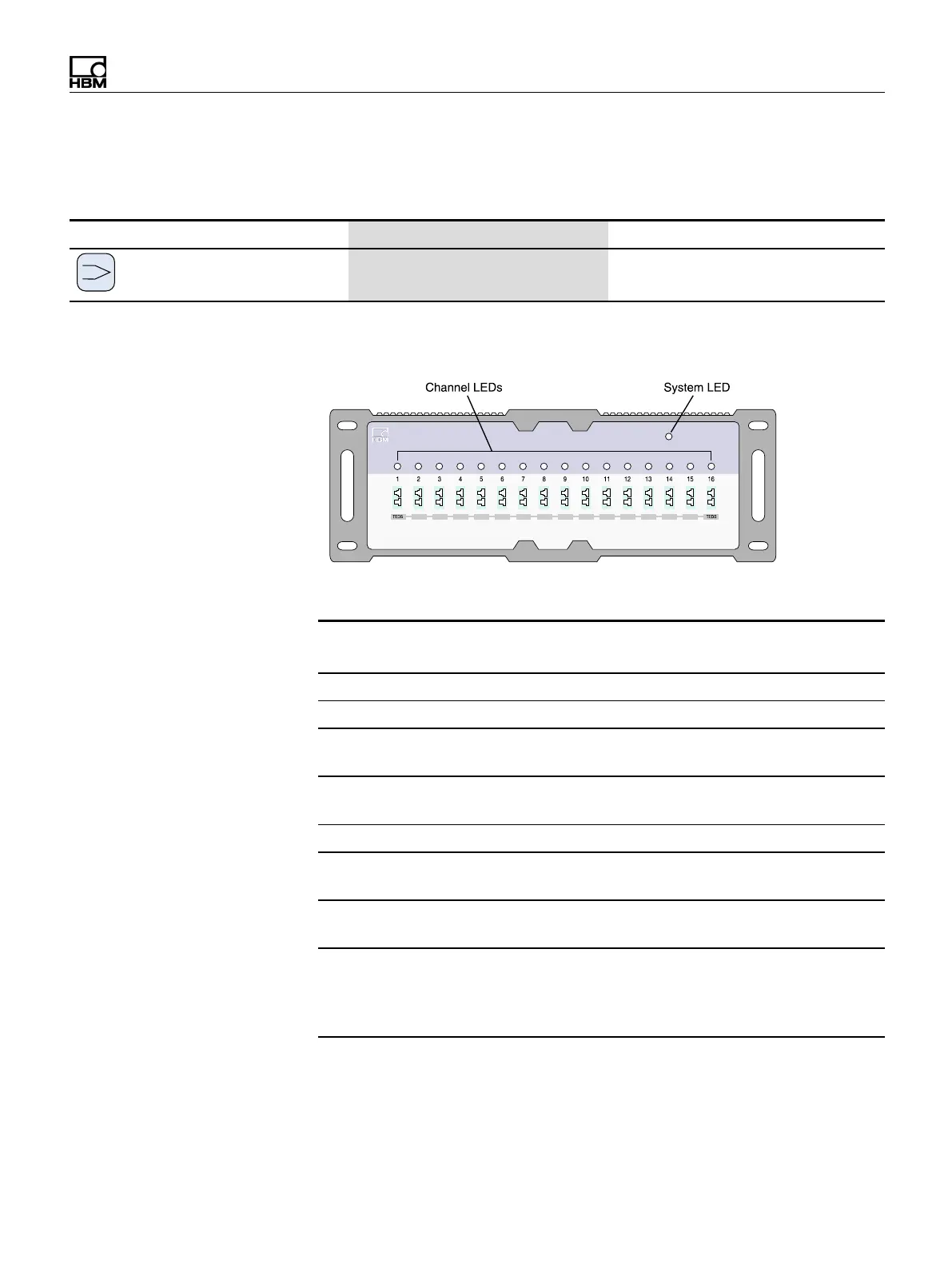

Status LEDs
The following table gives the descriptions for all LED states.
System LED
Channel
LED
Description
Green -- System is error free
Red -- System error
Orange Orange System is not ready; boot procedure is
running
Orange flashing Orange
flashing
System is not ready; download is active
-- Green Connection is error free
-- Green
flashing
TEDS data is valid
(LED flashes for 5 seconds)
-- Orange Transducer identification/sensor scaling
is running
-- Red No sensor connected
Channel error (incorrectly parameterized,
connection error, invalid TEDS data)
Overload of sensor supply
Thermocouple with TEDS functionality (RFID)
Measuring point identification
