2 Setting up a system
22 A04089_07_E00_02 HBM: public MX Modules
Each UPX kit includes four (4) SO-227-1002109 (M4) screws to install the
uninterruptible power supply on a mounting bracket.
1. Mount a UPX unit (H) on a universal mounting bracket using serviceable
threadlock, four (4) M4 screws (C) and a 3 mm hex wrench.
2. Apply serviceable threadlock and tighten the screws (C) to 1.8 N-m (16 in-lbs)
torque or vibration may loosen screws and damage bracket threads.
NOTE
Install other equipment on the universal mounting bracket using appropriate
screws and serviceable threadlock. Some equipment, such as 1-EGPS-5HZ-2
and MOXA AWK-4121, must be installed on the bracket before the bracket is
installed on a SomatXR module. Fully tighten the screws or vibration may loosen
screws and damage device threads.
NOTE
Before mounting an accessory on a universal mounting bracket, make sure the
accessory will not exceed its maximum vibration and shock specifications (see
accessory data sheets).
2.3 Power considerations
CAUTION
A module may be damaged if a supply voltage greater than 30 V is used. If the
supply voltage drops below 10 V, the module switches off.
Electromagnetic conformity
The SomatXR series and its modules are intended for use in an industrial
environment. When used in residential or commercial environments, additional
arrangements may be required to limit electromagnetic emissions.

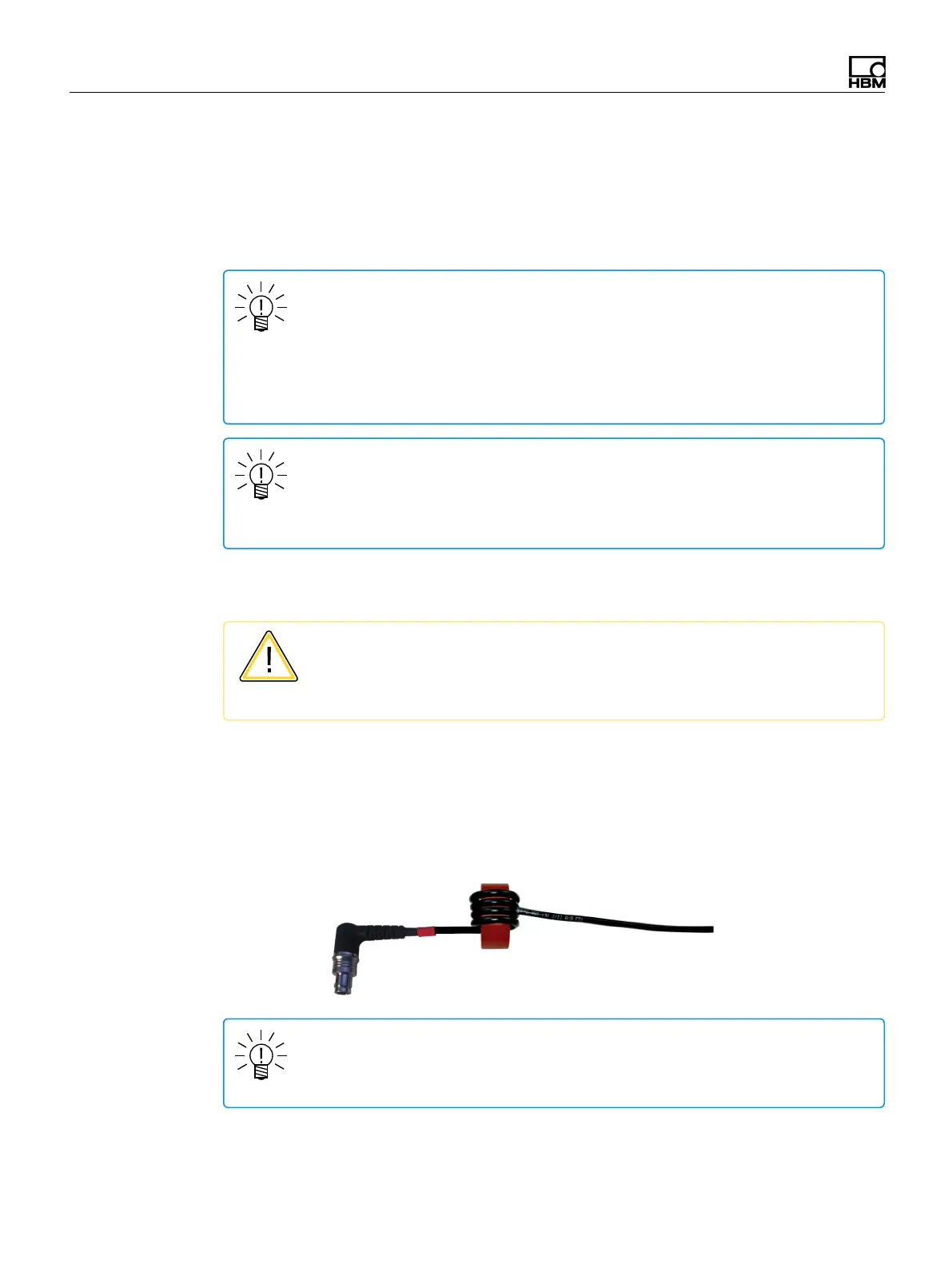

For example, in the case of voltage supply by battery, wrap the power supply cable
(1-KAB294-W-5) around the included inductive coil four times as pictured below.
NOTE
This applies to MX modules only and not to the supply of CX23-R or EX23-R
modules.
