HBM MX840B-R - MX590 B-R Pressure Acquisition Module

MX Modules A04089_07_E00_02 HBM: public 61

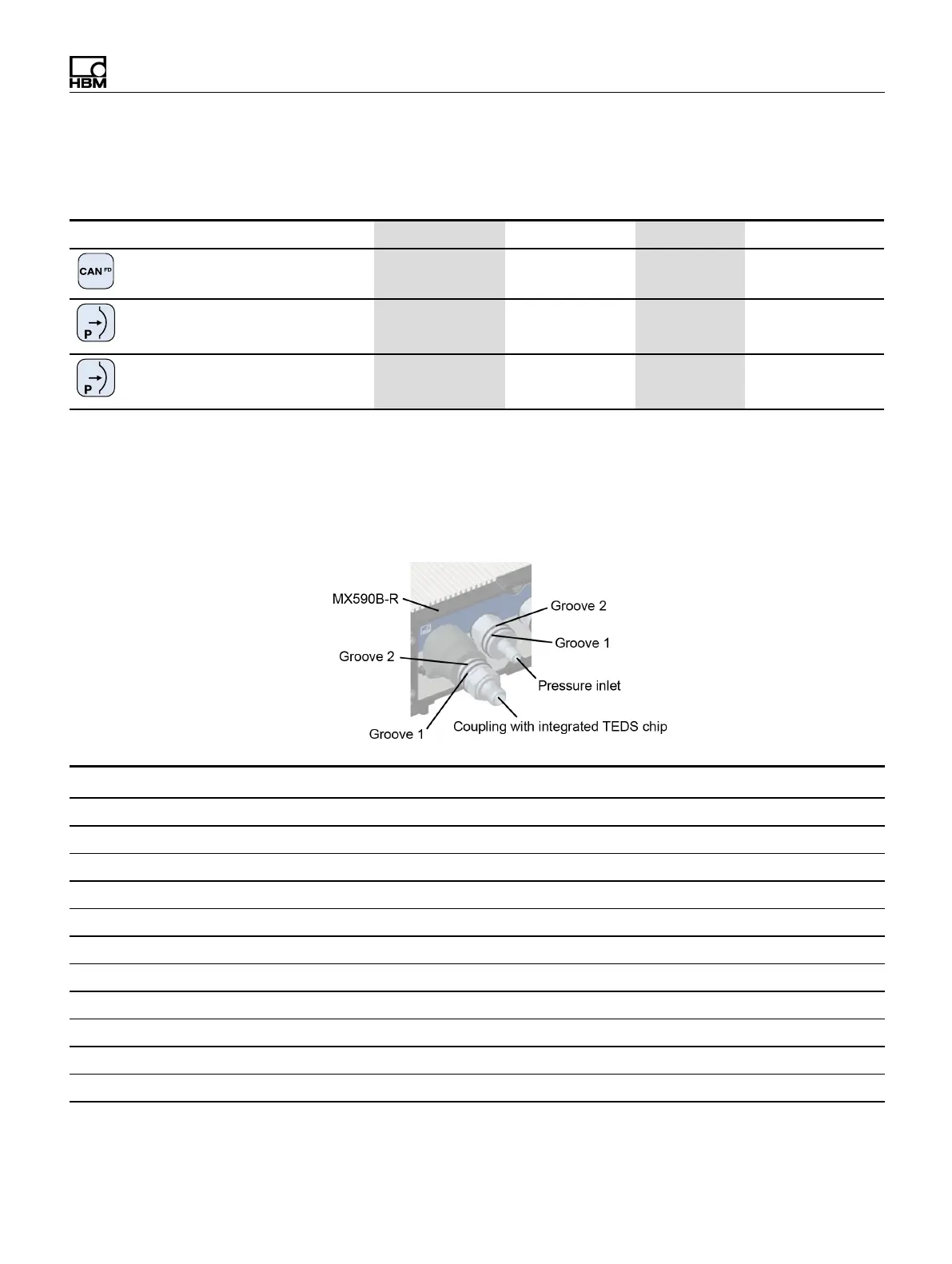

4.9 MX590B-R pressure acquisition module
Up to five (5) pressure inlets for direct acquisition of relative and absolute pressures
using TEDS technology for each port.
Transducer MX1609KB-R MX1609TB-R MX590B-R Wiring diagram
CAN FD bus
93
Absolute pressure (gas/fluid) sensor
● 1
Relative pressure (gas/fluid) sensor
● 1
Configurable with up to five (5) individual pressure transducers, with pressure
measurement: absolute, up to 10 bar; relative, up to 25 bar. A module may be
ordered with 5 different pressure ranges, selected from those listed below.
Measuring range Groove 1 color Groove 2 color Order code
0 ... 4 bar absolute Blue Blue A
0 ... 6 bar absolute Green Green B
0 ... 10 bar absolute Yellow Yellow C
-0.5 ... +0.5 bar relative Red Black D
0 ... +1.6 bar relative Black Black E
-1 ... +2.5 bar relative Blue Brown K
-1 ... +4 bar relative Red Blue F
-1 ... + 10 bar relative Blue Yellow G
-1 ... +16 bar relative Orange Orange H
0 ... +25 bar relative Brown Brown I
Empty (blank plate) - - 0
