4.8.2 MX471C-R CAN / CAN FD Module
Up to four (4) independent CAN / CAN FD bus inputs can be connected to the
MX471C-R module.
Transducer MX471C-R Wiring diagram
CAN bus
database or raw message
●
§
database only
93
CAN FD bus
● 93
§
Including support for CCP/XCP-on-CAN (not in combination with CX23-R).
Each CAN bus node is electrically isolated from each other and from the power
supply.
The MX471C-R supports classical bit rates up to 1 Mbit/s and CAN FD rates up to 4
Mbit/s. Please refer to the MX471C-R Data Sheet for the relationship between bit
rate and maximum bus line length.

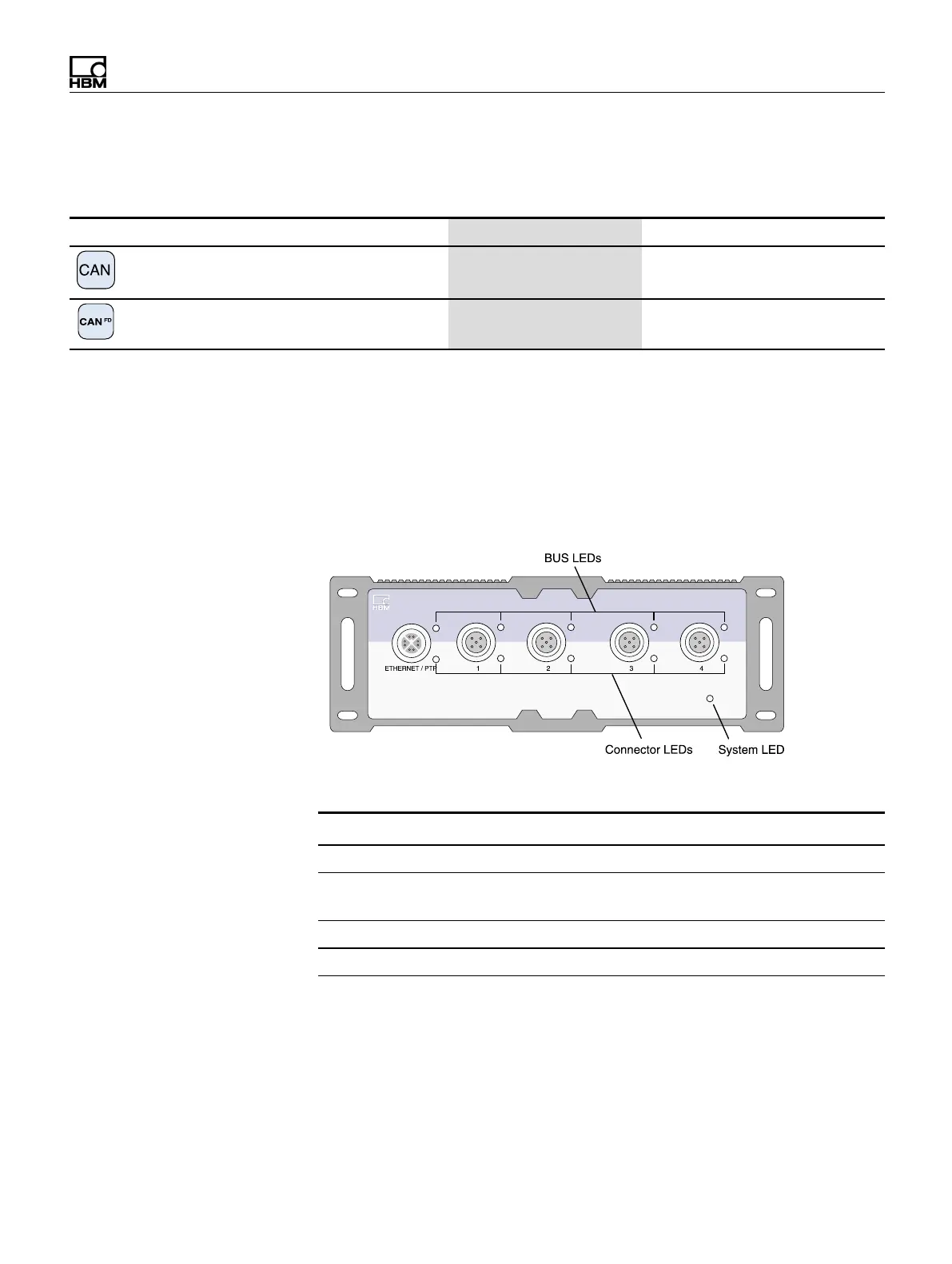

Status LEDs
The following tables give the descriptions for all LED states.
System LED Description
Green System is error free
Orange System is not ready; boot procedure is
running
Orange flashing System is not ready; download is active
Red System error; faulty synchronization
