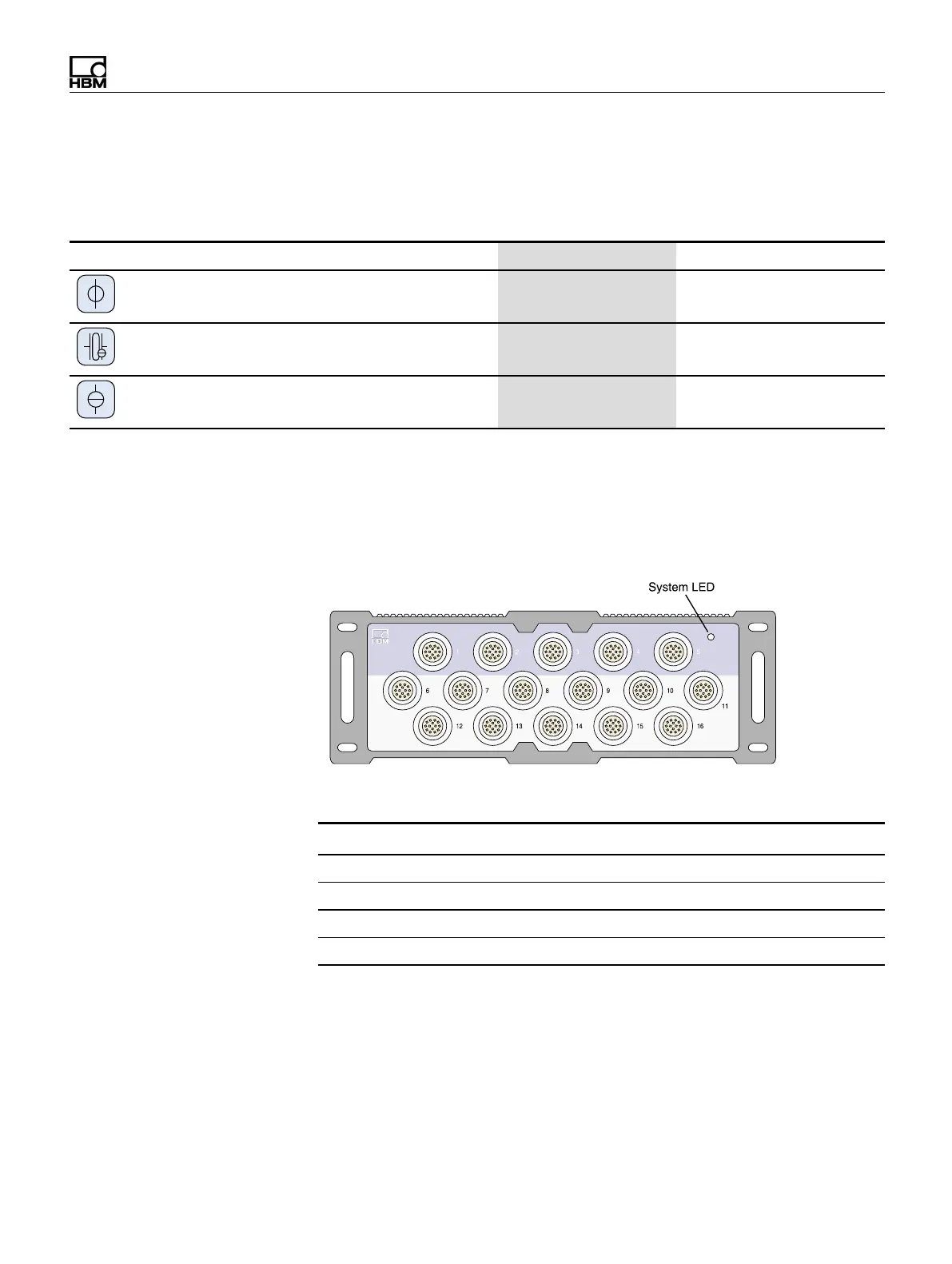

4.3 MX1601B-R standard module (universal amplifier)
Up to 16 configurable inputs for DC voltage sources (60 V, 10 V, 100 mV), DC
current sources (20 mA) or current-fed piezoelectric transducers (IEPE, ICP®) can
be connected to the MX1601B-R module.
Transducer MX1601B-R Wiring diagram
Voltage,
60 V, 10 V, 100 mV
● 74
Current-fed piezoelectric transducer
(IEPE, ICP®)
●
†
75
Current, 20 mA
● 76
†
Use ODU 14-pin to BNC adapter 1-KAB430-0.3.
All measuring channels are electrically isolated from one another and from the power.
When using transducer excitation, electrical isolation from the supply voltage of the
amplifier is rescinded.
Status LED
The following table gives the descriptions for all LED states.
System LED Description
Green System is error free
Red System error
Orange System is not ready; boot procedure is running
Orange flashing System is not ready; download is active
