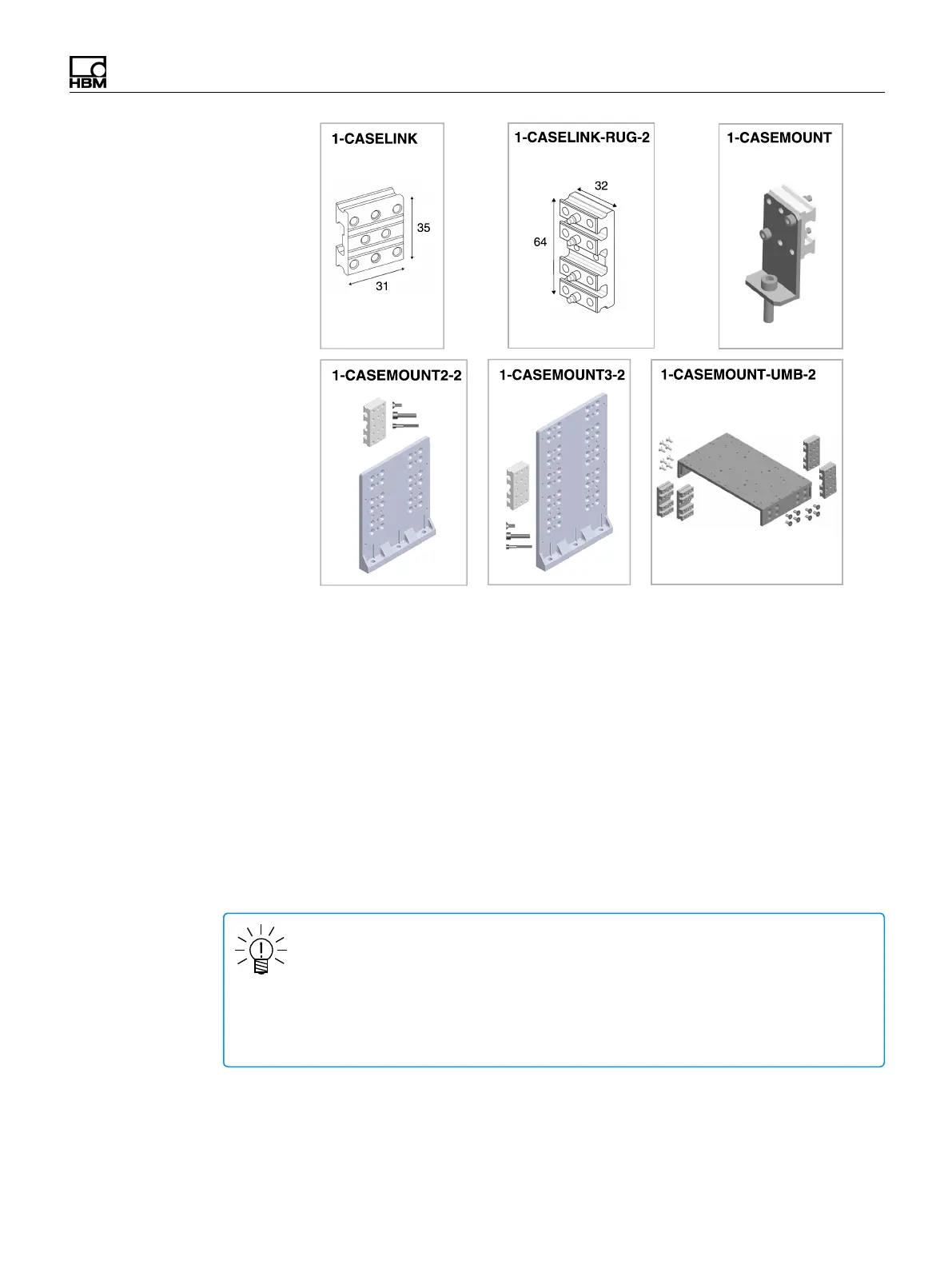

2.2.1 Caselinks (1-CASELINK or 1-CASELINK-RUG-2)
A set of caselinks consists of four (4) elements to connect two (2) SomatXR
modules to each other. Set screws (M5) are included with the caselinks to secure
the caselinks on the modules.
2.2.2 Casemounts (1-CASEMOUNT, 1-CASEMOUNT2-2 or 1-CASEMOUNT3-2)
n Use 1-CASEMOUNT to mount one module
n Use 1-CASEMOUNT2-2 to mount two modules
n Use 1-CASEMOUNT3-2 to mount three modules
Set screws (M5) and flat screws are included to secure the caselinks and brackets
on the modules. See the data sheets at www.hbm.com for more information.
NOTE
HBM recommends mounting modules individually in high vibration environments.
Individually mounted SomatXR modules are vibration- and shock-proof according
to MIL-STD-202G. Stacked upper modules in high vibration environments may
exceed vibration and shock specifications. Make sure mounted modules will not
exceed vibration and shock specifications (see module data sheets).
