HBM MX840B-R - Modules; Universal and Amplifier Modules

4 Modules
MX Modules A04089_07_E00_02 HBM: public 39
4 Modules
4.1 MX840B-R universal module
Up to eight (8) universal inputs can be connected to the MX840B-R module
compatible with more than 16 transducer technologies.

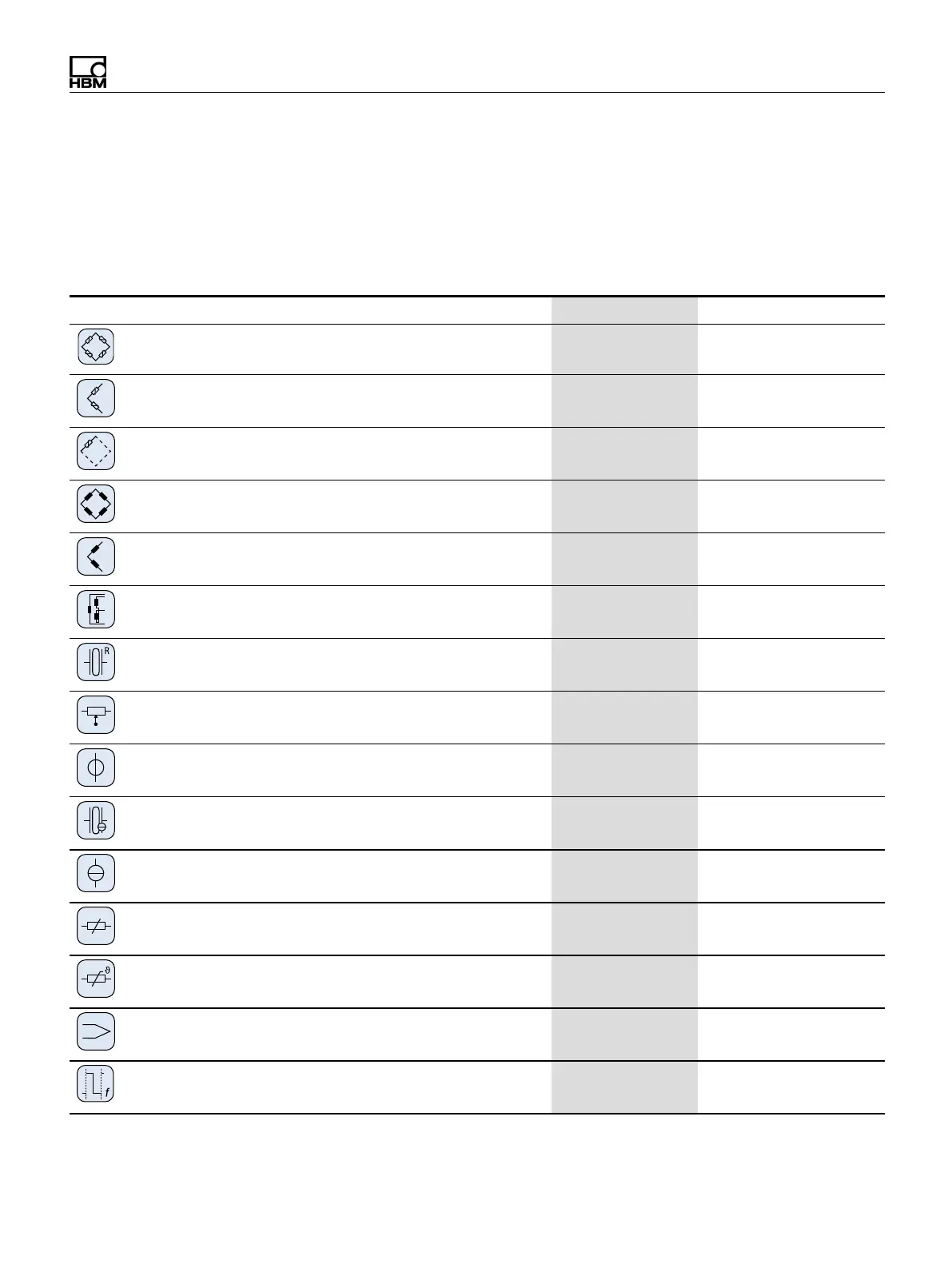

Transducer MX840B-R Wiring diagram
Strain gage, full bridge
six-wire configuration
● 64
Strain gage, half bridge
five-wire configuration
● 64
Strain gage, quarter bridge
three- or four-wire configuration
●
*
3-wire only
64
Inductive full bridge
● 68
Inductive half bridge
● 68
LVDT
(linear variable differential transformer)
● 68
Piezoresistive transducer
● 71
Potentiometric transducer
● 72
Voltage,
60 V, 10 V, 100 mV
● 74
Current-fed piezoelectric transducer
(IEPE, ICP®)
●
†
75
Current, 20 mA
● 76
Resistance or resistance-based measurements
● 78
Resistance thermometer (RTD),
PT100 or PT1000
● 78
Thermocouple
●
‡
80
Frequency / pulse counter
(timer, TTL)
●
connectors 5-8
82
