4 Modules
40 A04089_07_E00_02 HBM: public MX Modules
Transducer MX840B-R Wiring diagram
Torque / speed
●
connectors 5-8
82
SSIprotocol
●
connectors 5-8
82
CAN bus
database or raw message
●
connector 1
93
*
Use quarter bridge adapter 1-SCM-R-SG1000-2, 1-SCM-R-SG120-2 or 1-SCM-R-SG350-2.
†
Use ODU 14-pin to BNC adapter 1-KAB430-0.3.
‡
Use thermocouple adapter 1-SCM-R-TCK-2 for K-type, 1-SCM-R-TCE-2 for E-type, 1-SCM-R-TCT-2 for T-type and 1-SCM-R-TCJ-2 for J-type.

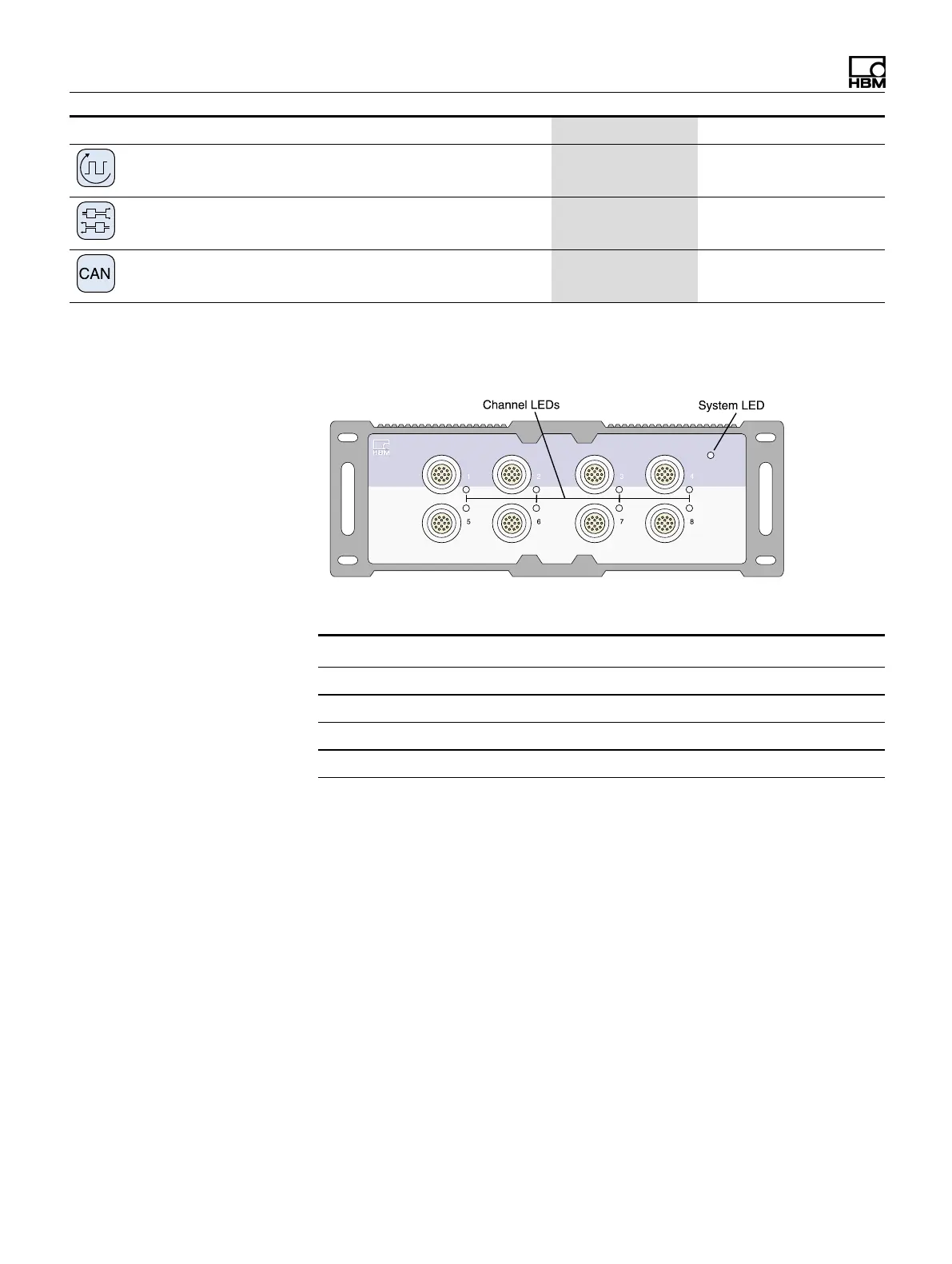

Status LEDs
The following table gives the descriptions for all LED states.
System LED Description
Green System is error free
Red System error
Orange System is not ready; boot procedure is running
Orange flashing System is not ready; download is active
