5.5 Voltage sources
Transducer MX840B-R MX1615B-R MX1601B-R MX411B-R
Voltage,
60 V, 10 V, 100 mV
●
●
60 V only
●
●
10 V only

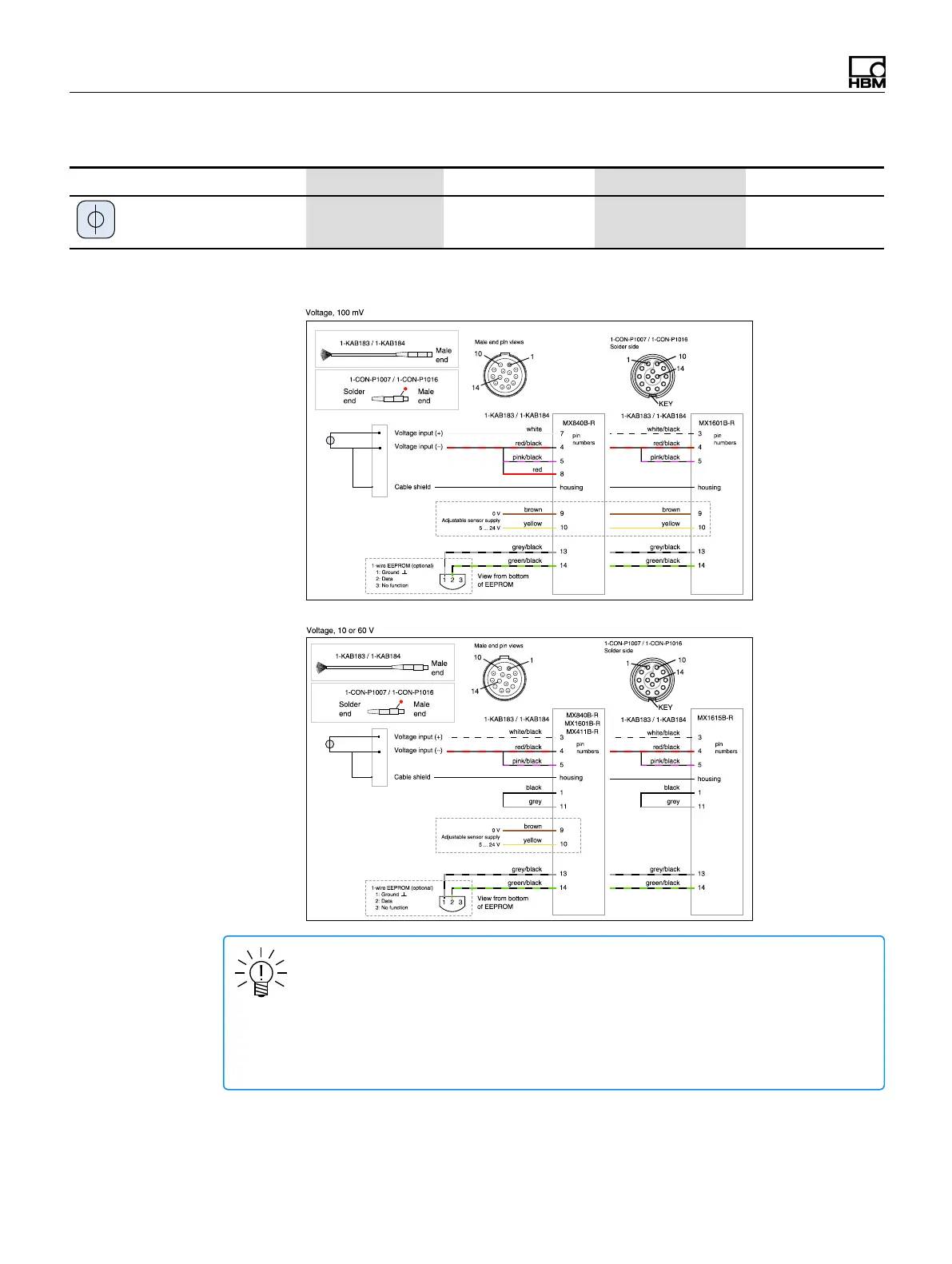

100 mV DC Voltage Source
10 or 60 V DC Voltage Source
NOTE
Maximum input voltage to housing and supply ground is ±60 V. A connection
between pins 1 and 11 is necessary for compatibility with the MX1615B-R
module. A connection between pins 4 and 5 is necessary for compatibility with all
other MX modules. The MX1615B-R module does not provide an adjustable
sensor supply.
