4.2 MX1615B-R bridge module (strain gage amplifier)
Up to 16 individually configurable inputs can be connected to the MX1615B-R,
including strain gage-based transducers, standardized voltage and resistance or
resistance-based measurements (for example, a PT100 resistance thermometer).
Transducer MX1615B-R Wiring diagram
Strain gage, full bridge
six-wire configuration
● 64
Strain gage, half bridge
five-wire configuration
● 64
Strain gage, quarter bridge
three- or four-wire configuration
● 64
Potentiometric transducer
● 72
Voltage,
60 V
●
60 V only
74
Resistance or resistance-based measurements
● 78
Resistance thermometer (RTD),
PT100
●
PT100 only
78
The MX1615B-R can supply bridge excitation voltage as a constant DC voltage or
1200 Hz (AC) square wave carrier frequency with an amplitude of 0.5, 1, 2.5 or 5
volts.
The measurement channels are electrically isolated from the power supply and the
interfaces. When TEDS or T-ID is used, the measurement channel is automatically
parameterized after connection.

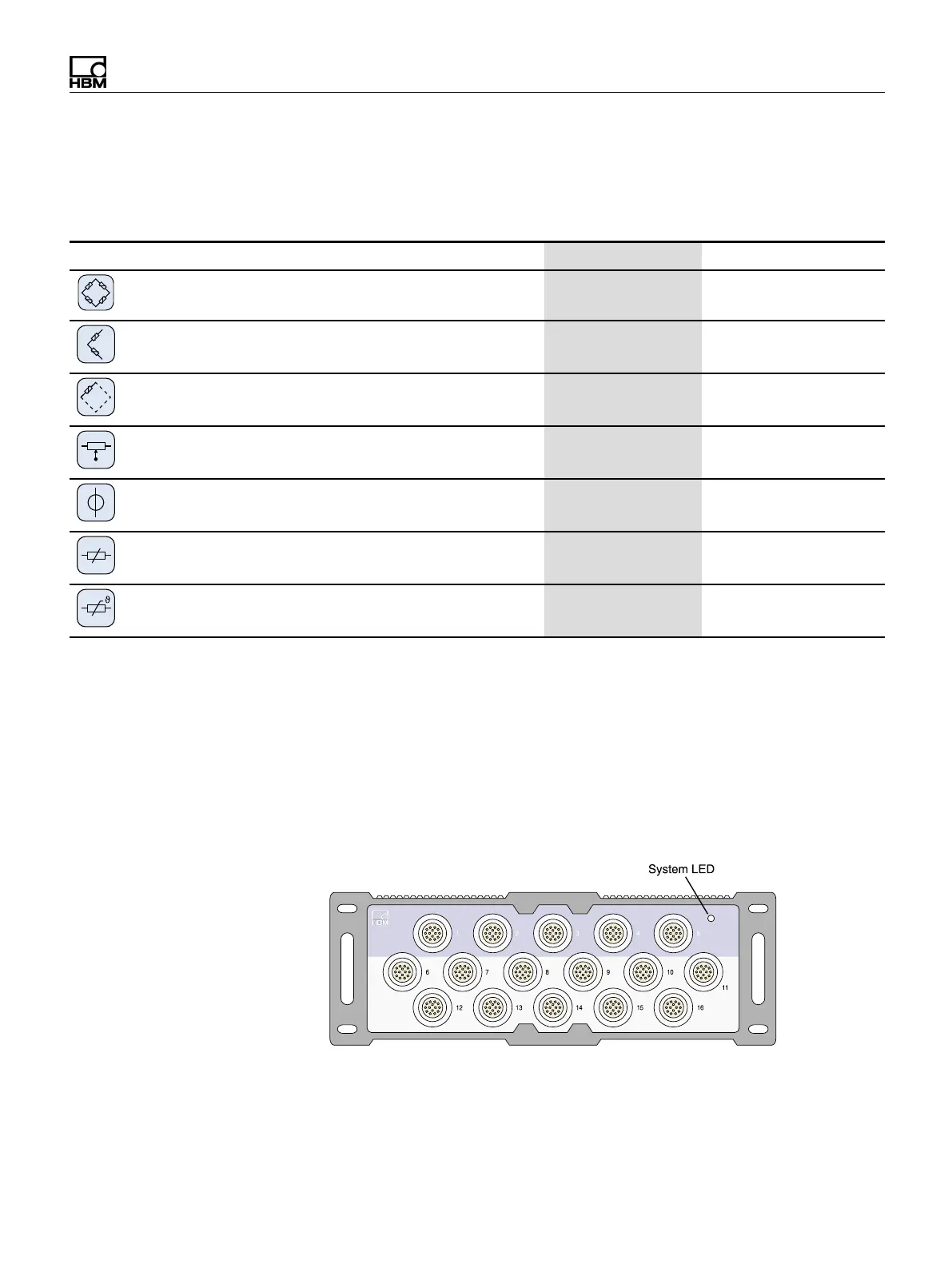

Status LED
