HBM MX840B-R - Page 65

5 Inputs
MX Modules A04089_07_E00_02 HBM: public 65

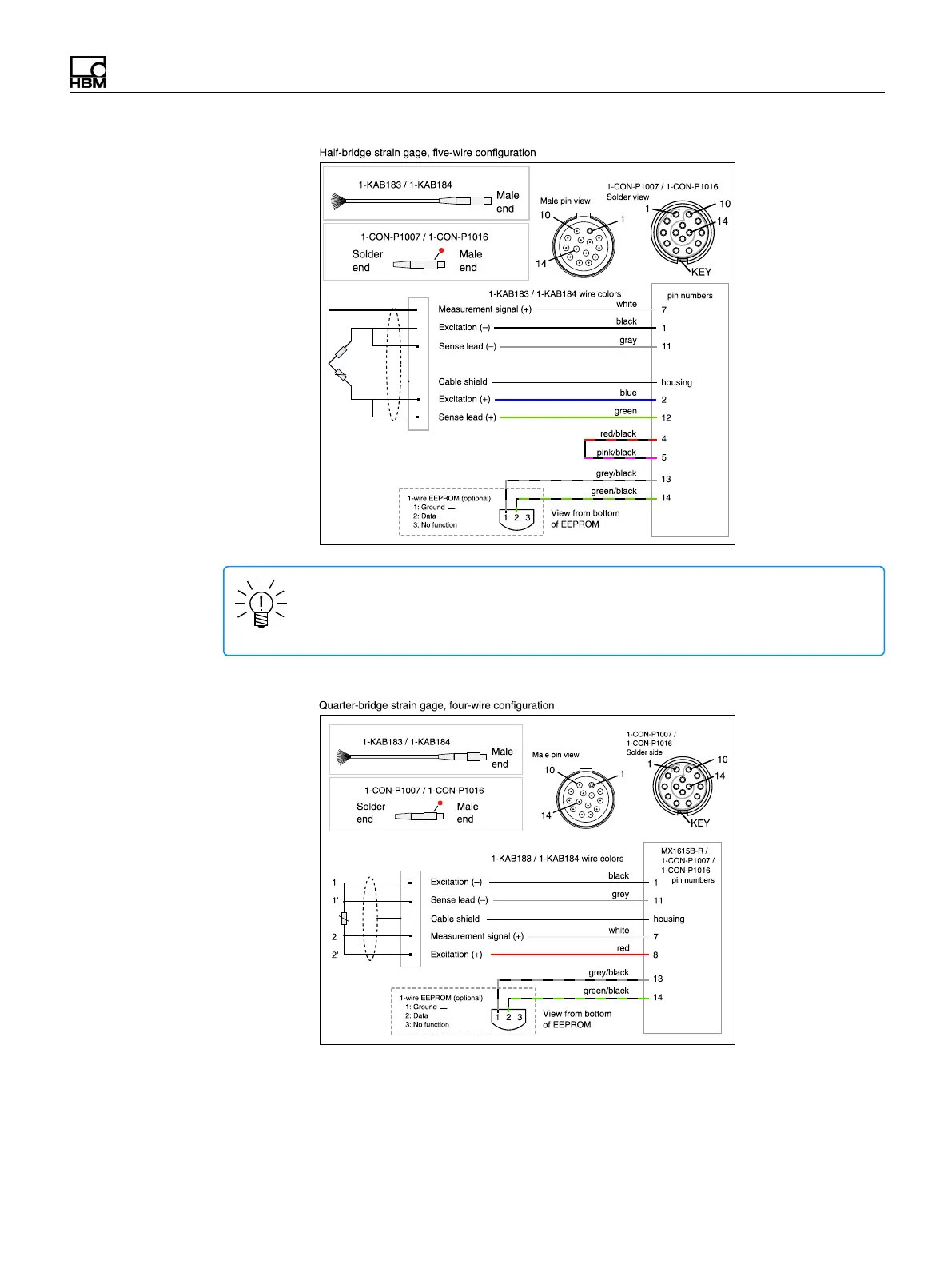

Half-bridge strain gage
NOTE
For half three-wire bridge configurations, a connection between the sense lead
and excitation lines must be made in the connector.
Quarter-bridge strain gages
