E9Screen Software EPC9 Manual 39
AD-Channel: The oscilloscope can display the following:
• F2-Ext - External Stim. Input filtered by Filter 2
• Imon-1 - Current monitor 1
• Imon-2 - Current monitor 2
• Vmon - Voltage monitor output
• AD 0…5 - Any of the other AD channels.
The F2-Ext setting allows you to use Filter 2 as a general-purpose variable filter. In
this setting the External Stim Input becomes the filter input, and the filter output is
available at Filter 2 and is displayed in the Oscilloscope window.
Help: Displays keyboard equivalents that are assigned to EPC9 controls.
In this mode you can click on any control to have the Help window
display a short description of that control.

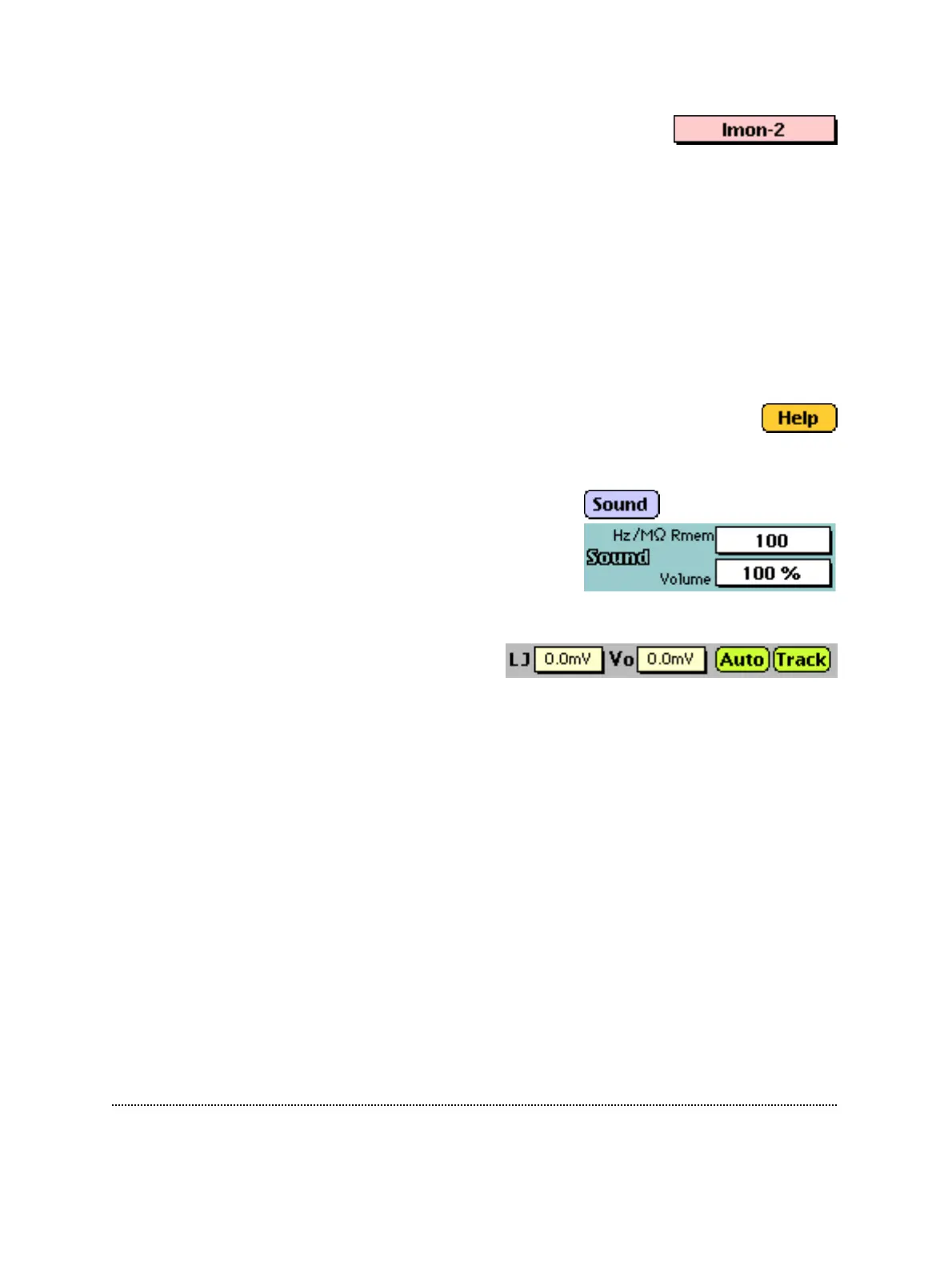

Sound: If this control is On, a sound is played with
its frequency coding for R-membrane. The sensitivity
(Hz/MΩ) and the volume can be specified. The
controls that set these parameters are normally
hidden, but may be accessed by closing the
Oscilloscope window.
V
0
(Pipette Offset): V
0
displays the offset
voltage (a voltage which is added to V-
membrane to obtain the pipette command voltage). It can be set either by the Auto-V
0
operation or by manually dragging the mouse after clicking into the item.
Furthermore, V
0
is changed automatically by the controlling program whenever the
user changes the variable LJ. This is necessary for LJ and the Auto-V
0
operation to
interact properly. It is not recommended that the user changes V
0
manually, because
this interferes with the software features for automatic offset correction.
Auto-V
0
: The Auto-V
0
button calls a procedure for automatic zeroing of the pipette
current. Thereby, an offset voltage (V
0
) to the pipette potential is systematically
varied until pipette current is zero. Range of V
0
is ± 200mV. Auto-V
0
is typically
performed before seal formation. It works properly only when a pipette is inserted
into the bath.
The Auto-V
0
procedure interacts with the variable LJ to provide for online correction
of liquid junction potentials and other offsets (see Chapter 7. Compensation
Procedures on page 59). This requires that V-membrane is set to the value of LJ (for On
Cell and In Out Recording Modes) or to the opposite polarity of LJ (for Whole Cell and
