48
STOP LAMP SWITCH
The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 41)
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows :
î Turn the ignition switch to “ON” position.
î Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
depressed to the limit of its free play. Turn
the adjusting nut in direction (A) to advance
switch timing or in direction (B) to retard
switch timing.
CAUTION
!!
î Do not attempt to start or ride the
motorcycle without a charged battery, it can
cause fusing of the bulbs and permanent
damage to certain electrical components.
î Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.
WARNING
!!
î Never use a fuse with a different rating from
that specified. It may lead to serious damage
to the electrical system or a fire due to short
circuit.
î Battery gives off explosive gases. Keep
sparks, flames & cigarettes away.

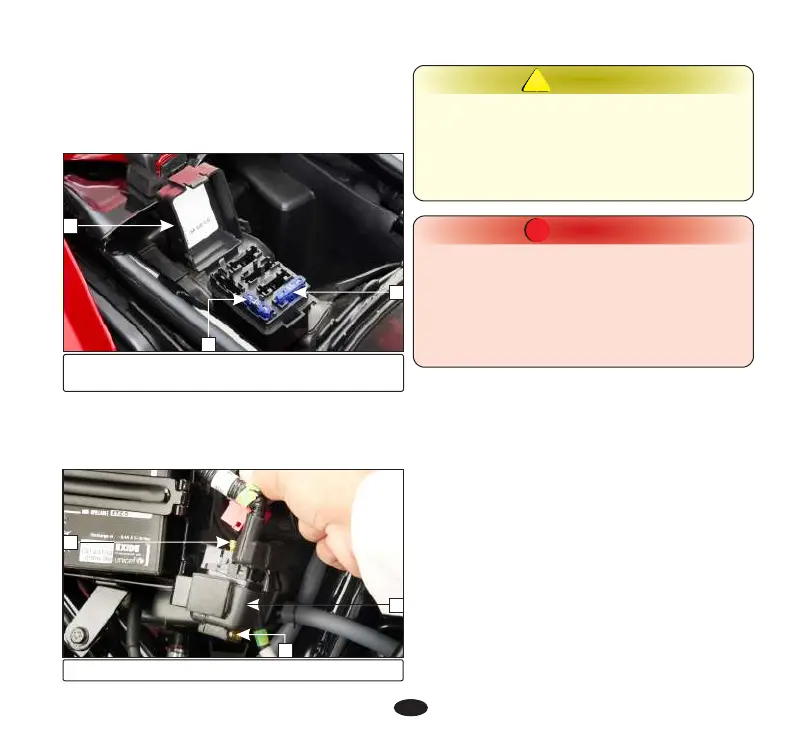

Fuse Box (A) Location : Below the seat
Fuse Type: Blade fuse
Start Mag. Switch (B)
Location: Inside right side cover
Fuse Type: Blade fuse
Location: Below start mag switch.
B
2
A
(1) In circuit fuse 15A
(2) Spare fuse 15A
(1) In circuit fuse 20A (2) Spare fuse 20A
Refer to the safety precautions on (page 25).
FUSE REPLACEMENT
2
1
1
